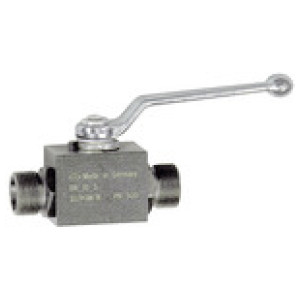

krogelni ventil, visoki tlak, lahka izvedba, M26x1.5
SKU: 103503RIE
EAN: 4047322081818
Ball valve, High pressure design, Lightweight series, Steel, Operating temp. -10 °C to 100 °C, M26x1.5, DN 16, PN max. 420 bar
For liquid and lubricating media.
Available versions:
- For solderless tube fittings acc. to DIN 2353, lightweight series acc. to ISO 8434-1.
- For solderless tube fittings acc. to DIN 2353, heavy-duty series acc. to ISO 8434-1.
- With female pipe thread acc. to DIN ISO 228-1 (BSP).
Obrestno financiranje
- 13,00 € x 6 mesecev
- 25,71 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

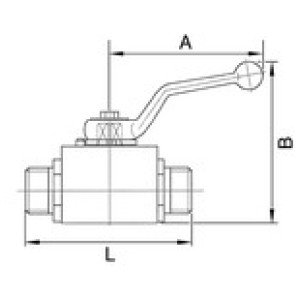

| Šifra | Navoj | DN | O.D. za cevi [mm] | B [mm] | L [mm] | A [mm] | Max. obratovalni tlak [bar] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 103498RIE | M12x1.5 | 4 | 6L | 55.0 | 67.0 | 76.0 | 500 | Čas dobave 3 - 5 dni | 36,56 € |  | |
| 103503RIE | M26x1.5 | 16 | 18L | 105.0 | 82.0 | 166.0 | 420 | Čas dobave 3 - 5 dni | 70,93 € | | |
| 103501RIE | M18x1.5 | 10 | 12L | 68.0 | 75.0 | 100.0 | 500 | Čas dobave 3 - 5 dni | 39,72 € | | |
| 103499RIE | M14x1.5 | 6 | 8L | 55.0 | 67.0 | 76.0 | 500 | Čas dobave 3 - 5 dni | 34,54 € | | |
| 103502RIE | M22x1.5 | 12 | 15L | 92.0 | 83.0 | 112.0 | 500 | Čas dobave 3 - 5 dni | 43,71 € | | |
| 103504RIE | M30x2 | 20 | 22L | 121.0 | 99.0 | 187.0 | 420 | Čas dobave 3 - 5 dni | 85,45 € | | |
| 103500RIE | M16x1.5 | 8 | 10L | 68.0 | 75.0 | 100.0 | 500 | Čas dobave 3 - 5 dni | 37,71 € | | |
| 103505RIE | M36x2 | 25 | 28L | 128.0 | 108.0 | 187.0 | 420 | Čas dobave 3 - 5 dni | 106,46 € | |
Opis
Ball valve, High pressure design, Lightweight series, Steel, Operating temp. -10 °C to 100 °C, M26x1.5, DN 16, PN max. 420 bar
For liquid and lubricating media.
Available versions:
- For solderless tube fittings acc. to DIN 2353, lightweight series acc. to ISO 8434-1.
- For solderless tube fittings acc. to DIN 2353, heavy-duty series acc. to ISO 8434-1.
- With female pipe thread acc. to DIN ISO 228-1 (BSP).
Tehnični podatki in specifikacije
| Ohišje | Steel |
| Max. obratovalni tlak [bar] | 420 |
| Min. delovna temperatura [°C] | -10 |
| Max. delovna temperatura [°C] | 100 |
| Navoj | M26x1.5 |
| DN | 16 |
| O.D. za cevi [mm] | 18L |
| Krogla | Hard-chrome plated steel |
| Gred izbirnika | Steel |
| Tesnilo gredi izbirnika | NBR |
| Kontrolno kroglično tesnilo | POM |
| Bore inball | Full bore |
| A [mm] | 166.0 |
| L [mm] | 82.0 |
| B [mm] | 105.0 |
