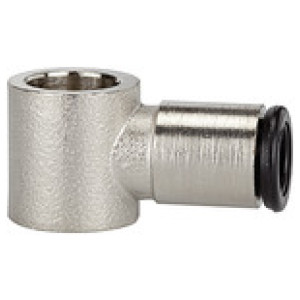

L-obročni del, na votlo vijaka M5, za cev zunanja Ø 4 mm
SKU: 108832RIE
EAN: 4047322285766
L-ring piece, for hollow screw M5, for hose exterior Ø 4 mm, Working pressure -0.98 to 16 bar, Operating temp. -20 °C to 70 °C
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation

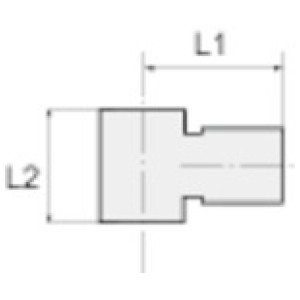

Šifra | Rokav | Za banjo vijak | Za cevi O.D. [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|
108835RIE | POM black | G 1/8 | 8 | 15.0 | 24.5 | Čas dobave: Predvidoma 3 - 5 dni | 3,64 € | ||
108834RIE | POM black | G 1/8 | 6 | 15.0 | 23.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,28 € | ||
108838RIE | Black nickel-plated brass | G 1/4 | 10 | 17.0 | 27.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,61 € | ||
108833RIE | POM black | G 1/8 | 4 | 15.0 | 20.5 | Čas dobave: Predvidoma 3 - 5 dni | 3,46 € | ||
108840RIE | POM black | G 3/8 | 8 | 20.0 | 27.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,79 € | ||
108836RIE | POM black | G 1/4 | 6 | 17.0 | 24.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,84 € | ||
108839RIE | Black nickel-plated brass | G 1/4 | 12 | 17.0 | 28.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,87 € | ||
108837RIE | POM black | G 1/4 | 8 | 17.0 | 26.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,89 € | ||
108842RIE | Black nickel-plated brass | G 3/8 | 12 | 20.0 | 29.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,93 € | ||
108841RIE | Black nickel-plated brass | G 3/8 | 10 | 20.0 | 28.0 | Čas dobave: Predvidoma 3 - 5 dni | 5,10 € | ||
108832RIE | POM black | M5 | 4 | 9.0 | 18.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,05 € |
Opis
L-ring piece, for hollow screw M5, for hose exterior Ø 4 mm, Working pressure -0.98 to 16 bar, Operating temp. -20 °C to 70 °C
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Tehnični podatki in specifikacije
Serija | click-clock |
Min. delovni tlak [bar] | -0.98 |
Max. delovni tlak [bar] | 16 |
Min. delovna temperatura [°C] | -20 |
Max. delovna temperatura [°C] | 70 |
Priporočena cev | PA, PU |
Rokav | POM black |
Vpenjalni obroč | Stainless steel |
Za cevi O.D. [mm] | 4 |
L1 [mm] | 18.0 |
L2 [mm] | 9.0 |
Za banjo vijak | M5 |
Material | Nickel-plated brass |
