Manometer, z navojem (vhodni) - za cev (izhodni), M5, za cev Ø 4
SKU: 106756RIE
EAN: 4047322389815

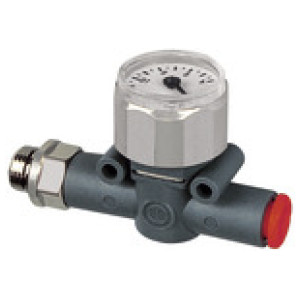

Pressure gauge »lineonline«, Thread (inlet) - hose (outlet), M5, for hose Ø 4 mm, Operating pressure max. 12 bar
Though small in size, these pressure gauges ensure accurate reading.
Čas dobave 3 - 5 dni
32,17 €
25,74 €

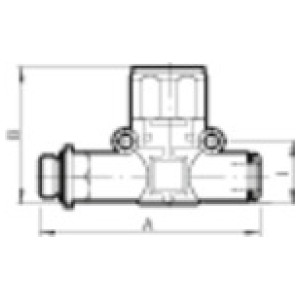

| Šifra | Navoj | Za cevi Ø [mm] | I [mm] | B [mm] | A [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 106762RIE | G 3/8 | 8 | 18.7 | 41.1 | 72.4 | Čas dobave 3 - 5 dni | 29,46 € |  | |
| 106758RIE | G 1/8 | 6 | 14.6 | 35.0 | 58.3 | Čas dobave 3 - 5 dni | 26,03 € | | |
| 106760RIE | G 1/4 | 6 | 14.6 | 35.0 | 61.3 | Čas dobave 3 - 5 dni | 26,16 € | | |
| 106759RIE | G 1/8 | 8 | 18.7 | 41.1 | 66.4 | Čas dobave 3 - 5 dni | 26,79 € | | |
| 106757RIE | G 1/8 | 4 | 12.8 | 36.1 | 51.5 | Čas dobave 3 - 5 dni | 26,31 € | | |
| 106761RIE | G 1/4 | 8 | 18.7 | 41.1 | 70.8 | Čas dobave 3 - 5 dni | 28,30 € | | |
| 106756RIE | M5 | 4 | 12.8 | 36.1 | 47.7 | Čas dobave 3 - 5 dni | 25,74 € | |
Opis
Pressure gauge »lineonline«, Thread (inlet) - hose (outlet), M5, for hose Ø 4 mm, Operating pressure max. 12 bar
Though small in size, these pressure gauges ensure accurate reading.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Max. obratovalni tlak [bar] | 12 |
| Max. temperaturno območje [°C] | 60 |
| Tesnilo | NBR |
| Telo | Technopolymer |
| Notranji deli | Nickel-plated brass, brass, technopolymer, stainless steel |

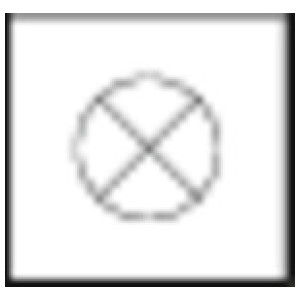

| Pnevmatski simboli | On housing |
| Natančnost | +/- 4 % of full-scale value |
| Lestvica | 0 to 12 bar |
| Merilno območje max. bar | 12 |
| Navoj | M5 |
| Za cevi Ø [mm] | 4 |
| A [mm] | 47.7 |
| B [mm] | 36.1 |
| I [mm] | 12.8 |
