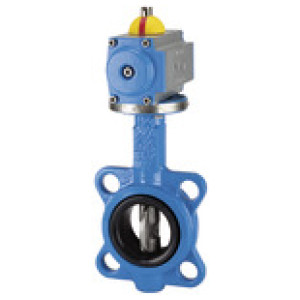

Medprirobnični zaporni ventil, Pneum. vklop, DN 50 slika
Medprirobnični zaporni ventil, Pneum. vklop, DN 50 slika

* slike so simbolične

Medprirobnični zaporni ventil, Pneum. vklop, DN 50

SKU: 103675RIE
EAN: 4047322338950

Intermediate flange blocking flap, Pneumat. actuation drive, single-acting, Operating temp. -15°C to 120°C, DN 50, PN max. 16 bar

Butterfly valves with pneumatic actuator. Pneumatic actuators, double- or single acting version.

For water/steam, seawater, salt water, ester, ketones, alkalis, caustic soda, sodium hydroxide.

Not recommended for hydrocarbons, oils or greases.

Čas dobave 3 - 5 dni
467,15 €
ali od 12,43 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 12,43 € x 48 mesecev
  • 15,89 € x 36 mesecev
  • 22,83 € x 24 mesecev
  • 43,70 € x 12 mesecev
  • 85,48 € x 6 mesecev
  • 169,07 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra B [mm] DN H1 [mm] L [mm] H2 [mm] H3 [mm] Zaloga Cena Nakup Natisni
103676RIE 49.0 65 78.0 115.0 155.0 285.0
Čas dobave 3 - 5 dni
533,27 € Natisni
103678RIE 56.0 100 102.0 163.0 178.0 348.0
Čas dobave 3 - 5 dni
869,97 € Natisni
103680RIE 59.0 150 138.0 216.0 265.0 395.0
Čas dobave 3 - 5 dni
1.322,71 € Natisni
103674RIE 38.0 40 68.0 94.0 108.0 238.0
Čas dobave 3 - 5 dni
464,87 € Natisni
103677RIE 47.0 80 89.0 127.0 162.0 292.0
Čas dobave 3 - 5 dni
629,19 € Natisni
103679RIE 59.0 125 123.0 190.0 191.0 361.0
Čas dobave 3 - 5 dni
1.052,26 € Natisni
103675RIE 47.0 50 71.0 100.0 143.0 273.0
Čas dobave 3 - 5 dni
467,15 € Natisni

Opis

Intermediate flange blocking flap, Pneumat. actuation drive, single-acting, Operating temp. -15°C to 120°C, DN 50, PN max. 16 bar

Butterfly valves with pneumatic actuator. Pneumatic actuators, double- or single acting version.

For water/steam, seawater, salt water, ester, ketones, alkalis, caustic soda, sodium hydroxide.

Not recommended for hydrocarbons, oils or greases.

Tehnični podatki in specifikacije

Max. obratovalni tlak [bar] 16
Min. delovna temperatura [°C] -15
Max. delovna temperatura [°C] 120
Min. vodeni tlak [bar] 5
Max. vodeni tlak [bar] 5.5
Ohišje Grey cast iron GG25 epoxy resin coated, RAL 5015 color
Gred izbirnika SS416
DN 50
Disc Stainless steel CF8M/1.4404
Tesnilo gredi izbirnika EPDM
Tesnilo EPDM
Premaz za pogon NBR
Različica single-acting - spring to close
Pogonski material Anodised aluminium
Kot vrtenja [°] 90
Adapter ventila Supplied as standard, operated by a 3/2- or 5/2-way valve
B [mm] 47.0
H1 [mm] 71.0
H2 [mm] 143.0
H3 [mm] 273.0
L [mm] 100.0
