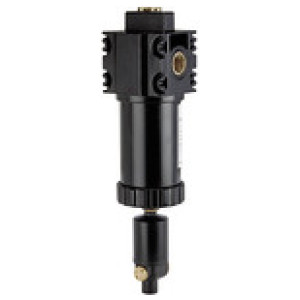

MikroFilter brez diferenčnega manometra, 0.01 µm, G 1
SKU: 101572RIE
EAN: 4047322086936
Microfilter without differential pressure gauge, 0.01 µm, G 1, Input pressure 4 - 12 bar, Medium / ambient temp. 5 °C to 60 °C
Ideal for filtering out aerosols and solid impurities larger than 0.01 µm.
Micro-filters should always be used in conjunction with a pre-filter.
Obrestno financiranje
- 16,64 € x 48 mesecev
- 21,27 € x 36 mesecev
- 30,55 € x 24 mesecev
- 58,48 € x 12 mesecev
- 114,40 € x 6 mesecev
- 226,27 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

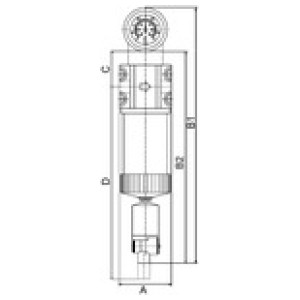

Šifra | Navoj | C [mm] | A [mm] | B2 [mm] | D [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|
101569RIE | G 3/8 | 57.0 | 83.0 | 335.0 | 353.0 | 1300 | Čas dobave: Predvidoma 3 - 5 dni | 308,11 € | ||
101571RIE | G 3/4 | 57.0 | 83.0 | 405.0 | 493.0 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
101573RIE | G 1 1/4 | 72.0 | 118.0 | 520.0 | 658.0 | 4580 | Čas dobave: Predvidoma 3 - 5 dni | 715,24 € | ||
101575RIE | G 2 | 72.0 | 118.0 | 810.0 | 1.238.0 | 9000 | Čas dobave: Predvidoma 3 - 5 dni | 986,65 € | ||
101574RIE | G 1 1/2 | 72.0 | 118.0 | 620.0 | 858.0 | 6500 | Čas dobave: Predvidoma 3 - 5 dni | 787,91 € | ||
101568RIE | G 1/4 | 57.0 | 83.0 | 335.0 | 353.0 | 1300 | Čas dobave: Predvidoma 3 - 5 dni | 311,20 € | ||
101570RIE | G 1/2 | 57.0 | 83.0 | 335.0 | 353.0 | 1300 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
101572RIE | G 1 | 72.0 | 118.0 | 420.0 | 458.0 | 4080 | Čas dobave: Predvidoma 3 - 5 dni | 624,88 € |
Opis
Microfilter without differential pressure gauge, 0.01 µm, G 1, Input pressure 4 - 12 bar, Medium / ambient temp. 5 °C to 60 °C
Ideal for filtering out aerosols and solid impurities larger than 0.01 µm.
Micro-filters should always be used in conjunction with a pre-filter.
Tehnični podatki in specifikacije
Navoj | G 1 |
Max. vhodni tlak [bar] | 12 |
Min. vhodni tlak [bar] | 4 |
Ohišje | Aluminium |
Element filtra | Borosilicate (with glass-fibre material and foam plastic) |
Rang filtra [µm] | 0.01 |
Posoda filtra | Aluminium |
Min. temperatura medija [°C] | 5 |
Max. temperatura medija [°C] | 60 |
Min. sobna temperatura [°C] | 5 |
Max. sobna temperatura [°C] | 60 |
Pretok [l/min] | 4080 |
A [mm] | 118.0 |
B2 [mm] | 420.0 |
C [mm] | 72.0 |
D [mm] | 458.0 |
Merjenje pretoka | At P1 = 6 bar and pressure drop Δp = 1.5% |
Učinkovitost [%] | 99.9999 |
