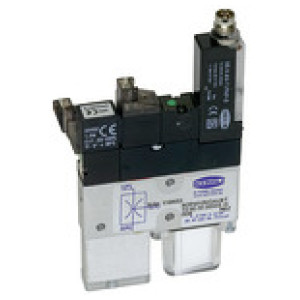

Mini kompaktni ejektor »mini pumpa« velikost šobe 1 mm, NO
SKU: 108398RIE
EAN: 4047322198837
Mini compact ejector »mini pump« digi. vacuum switch, Nozzle size 1 mm, NO, Compressed air/vacuum connection M5 IT, PN max 4.5 bar

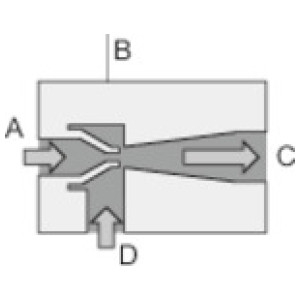

Purely pneumatic vacuum generator that operates on the Venturi principle. Compressed air enters the ejector at A and flows through the nozzle B. This results in a vacuum immediately behind the nozzle outlet, and air is drawn in through the vacuum inlet D. This air and the driving air leave the ejector via the silencer C.
Properties:
- Vacuum generator with integrated control valves and system monitoring functions
- Gripping and blowing off can be controlled without the need for external valves
- Optimised air consumption thanks to many models with differing suction capacities
- Minimum energy costs in continuous operation
- Easy adjustment with foil keypad and LED display of the settings
- Minimum size, low weight
- Optimum vacuum generation directly on the suction pad
- Complete solution for very simple installation
- Short learning curve thanks to teach function
- Further sensors unnecessary
- Easily visible status indication
Applications:
Ideal where space is restricted and for highly dynamic movements, handling
with industrial robots, linear axes, pick-and-place systems
Povpraševanje
Dovod vakuuma: M5 IT
Integrirano: NC blow-off valve, filter, silencer, non-return valve
Telo: Anodised aluminium
Višina [mm]: 107.0
| Šifra | Položaj sesalnega ventila v mirovanju | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 108397RIE | NC | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 108398RIE | NO | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Mini compact ejector »mini pump« digi. vacuum switch, Nozzle size 1 mm, NO, Compressed air/vacuum connection M5 IT, PN max 4.5 bar
Purely pneumatic vacuum generator that operates on the Venturi principle. Compressed air enters the ejector at A and flows through the nozzle B. This results in a vacuum immediately behind the nozzle outlet, and air is drawn in through the vacuum inlet D. This air and the driving air leave the ejector via the silencer C.
Properties:
- Vacuum generator with integrated control valves and system monitoring functions
- Gripping and blowing off can be controlled without the need for external valves
- Optimised air consumption thanks to many models with differing suction capacities
- Minimum energy costs in continuous operation
- Easy adjustment with foil keypad and LED display of the settings
- Minimum size, low weight
- Optimum vacuum generation directly on the suction pad
- Complete solution for very simple installation
- Short learning curve thanks to teach function
- Further sensors unnecessary
- Easily visible status indication
Applications:
Ideal where space is restricted and for highly dynamic movements, handling
with industrial robots, linear axes, pick-and-place systems
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 4.5 |
| Telo | Anodised aluminium |
| Integrirano | NC blow-off valve, filter, silencer, non-return valve |
| Velikost šobe [mm] | 1 |
| Dovod stisnjenega zraka | M5 IT |
| Dovod vakuuma | M5 IT |
| Stopnja evakuacije [%] | 85 |
| Max. stopnja sesanja [l/min] | 23 |
| Poraba zraka med evakuacijo [l/min] | 46 |
| Položaj sesalnega ventila v mirovanju | NO |
| Dolžina [mm] | 65.0 |
| Premer [mm] | 10.0 |
| Višina [mm] | 107.0 |
| Teža [g] | 80.0 |
