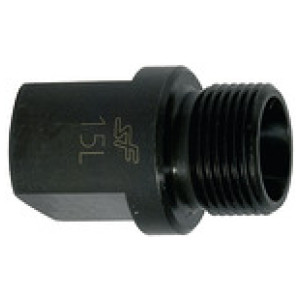

Montažni nastavek za konični nastavek iz nerjavnega jekla slika
Montažni nastavek za konični nastavek iz nerjavnega jekla slika

* slike so simbolične

Montažni nastavek za konični nastavek iz nerjavnega jekla

SKU: 112514RIE
EAN: 4047322169103

Pre-assembly supports for stainless steel cutting ring fitting, M12x1, Pipe exterior Ø 8 mm, AF 12, PN max. 100 bar

When stainless steel pipes are assembled, they must always be pre-assembled in a hardened pre-assembly adapter. They must never be assembled directly in the stainless steel adapter. The cones of the pre-assembly adapters are susceptible to wear and must therefore be inspected at regular intervals to check that they are still true to gauge.

We recommend using only seamless, soft-annealed, stainless steel pipes made of

1.4571 according to DIN 2391 Part 1 or DIN 2462, tolerance class D4/T3.

Čas dobave 3 - 5 dni
31,77 €
Primerjaj z ostalimi

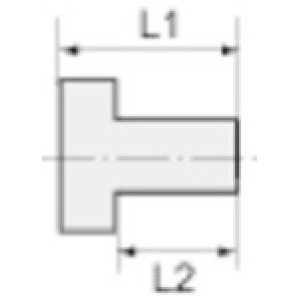

Šifra Navoj O.D. cev [mm] L2 [mm] a/f [mm] L1 [mm] PN [bar] Zaloga Cena Nakup Natisni
112518RIE M18x1.5 12 15.0 17 40.0 315
Čas dobave 3 - 5 dni
37,76 € Natisni
112520RIE M26x1.5 18 15.0 22 45.0 315
Čas dobave 3 - 5 dni
53,00 € Natisni
112512RIE M8x1.0 4 8.0 10 25.0 100
Čas dobave 3 - 5 dni
28,68 € Natisni
112517RIE M16x1.5 10 15.0 17 40.0 315
Čas dobave 3 - 5 dni
37,76 € Natisni
112521RIE M30x2.0 22 20.0 24 50.0 315
Čas dobave 3 - 5 dni
75,02 € Natisni
112515RIE M12x1.5 6 15.0 12 35.0 315
Čas dobave 3 - 5 dni
35,50 € Natisni
112516RIE M14x1.5 8 15.0 12 36.0 315
Čas dobave 3 - 5 dni
35,50 € Natisni
112513RIE M10x1.0 6 8.0 10 25.0 100
Čas dobave 3 - 5 dni
28,68 € Natisni
112519RIE M22x1.5 15 15.0 19 42.0 315
Čas dobave 3 - 5 dni
43,10 € Natisni
112514RIE M12x1.0 8 9.0 12 26.0 100
Čas dobave 3 - 5 dni
31,77 € Natisni

Opis

Pre-assembly supports for stainless steel cutting ring fitting, M12x1, Pipe exterior Ø 8 mm, AF 12, PN max. 100 bar

When stainless steel pipes are assembled, they must always be pre-assembled in a hardened pre-assembly adapter. They must never be assembled directly in the stainless steel adapter. The cones of the pre-assembly adapters are susceptible to wear and must therefore be inspected at regular intervals to check that they are still true to gauge.

We recommend using only seamless, soft-annealed, stainless steel pipes made of

1.4571 according to DIN 2391 Part 1 or DIN 2462, tolerance class D4/T3.

Tehnični podatki in specifikacije

Navoj M12x1.0
L1 [mm] 26.0
L2 [mm] 9.0
a/f [mm] 12
PN [bar] 100
O.D. cev [mm] 8
