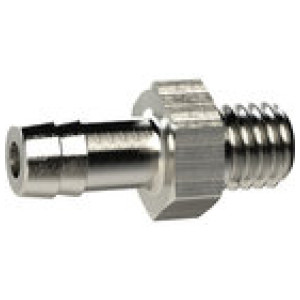

Moški priključek za cev, M3 o., za cev I.D. 2, AF 5
SKU: 135338RIE
EAN: 4047322495448
Screw-in hose connector, M3 o., for hose I.D. 2, nickel-plated brass, Max. working pressure 25 bar, Max. operating temp. 150 °C
Suitable for air, water, oil, steam, etc.
Čas dobave 3 - 5 dni
2,77 €
2,22 €

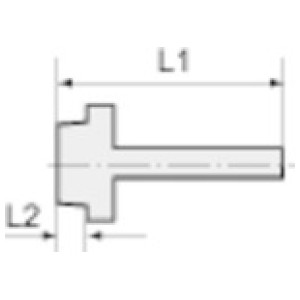

| Šifra | Navoj | Za cevi [mm] | L2 [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 135342RIE | M5 | I.D. 6 | 5.0 | 7 | 20.0 | Čas dobave 3 - 5 dni | 2,45 € |  | |
| 135341RIE | M5 | I.D. 4 | 5.0 | 7 | 16.0 | Čas dobave 3 - 5 dni | 2,38 € | | |
| 135345RIE | M12x1.5 | I.D. 13 | 9.0 | 17 | 42.0 | Čas dobave 3 - 5 dni | 3,56 € | | |
| 135346RIE | M14x1.5 | I.D. 13 | 9.0 | 17 | 42.0 | Čas dobave 3 - 5 dni | 3,74 € | | |
| 135343RIE | M8x0.75 | I.D. 6 | 7.0 | 12 | 22.0 | Čas dobave 3 - 5 dni | 1,14 € | | |
| 135339RIE | M3 | I.D. 3 | 3.0 | 5 | 14.0 | Čas dobave 3 - 5 dni | 2,26 € | | |
| 135340RIE | M5 | I.D. 3 | 5.0 | 7 | 16.0 | Čas dobave 3 - 5 dni | 2,38 € | | |
| 135344RIE | M10x1 | I.D. 9 | 9.0 | 14 | 29.0 | Čas dobave 3 - 5 dni | 2,53 € | | |
| 135338RIE | M3 | I.D. 2 | 3.0 | 5 | 14.0 | Čas dobave 3 - 5 dni | 2,22 € | |
Opis
Screw-in hose connector, M3 o., for hose I.D. 2, nickel-plated brass, Max. working pressure 25 bar, Max. operating temp. 150 °C
Suitable for air, water, oil, steam, etc.
Tehnični podatki in specifikacije
| Max. delovni tlak [bar] | 25 |
| Max. delovna temperatura [°C] | 150 |
| Material | Nickel-plated brass CW614N |
| Navoj | M3 |
| Za cevi [mm] | I.D. 2 |
| L1 [mm] | 14.0 |
| L2 [mm] | 3.0 |
| a/f [mm] | 5 |
