Nastavljivi dušilni ventil, z izpustom (C) M5 IT, M5
SKU: 106943RIE
EAN: 4047322180290
Throttle check valve, Discharge throttle (C) Threaded connection M5 IT, M5, PN max. 10 bar, Temperature -20 °C to 80 °C
For throttling flow rates and regulating the piston speed of cylinders. Small dimensions, ideal for tight spaces. To be screwed directly into the valve or cylinder. The set flow rate can be locked via the lock nut in the version with knurled screw. The variants in banjo bolt construction can be rotated during assembly and are fixed after tightening. The variants with plug-in connector, rotated can also be rotated freely after assembly. The seals and lubricants used are silicone-free.
Povpraševanje
Ffunkcija: Discharge throttle (C)
Povezava: M5 female thread
Telo: Nickel-plated brass
Vrsta povezave: Screw connection
Zarobljena tesnila: Polyamide, glass fibre-reinforced (only parts in banjo bolt construction)

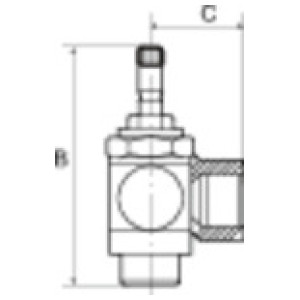

| Šifra | Navoj | Povezava | a/f [mm] | C [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 106943RIE | M5 | M5 female thread | 8 | 11.5 | 38.9 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 106945RIE | G 1/4 | G 1/4 female thread | 17 | 22.0 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 106946RIE | G 3/8 | G 3/8 female thread | 20 | 26.0 | 63.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 106947RIE | G 1/2 | G 1/2 female thread | 26 | 32.0 | 81.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 106944RIE | G 1/8 | G 1/8 female thread | 14 | 16.0 | 42.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Throttle check valve, Discharge throttle (C) Threaded connection M5 IT, M5, PN max. 10 bar, Temperature -20 °C to 80 °C
For throttling flow rates and regulating the piston speed of cylinders. Small dimensions, ideal for tight spaces. To be screwed directly into the valve or cylinder. The set flow rate can be locked via the lock nut in the version with knurled screw. The variants in banjo bolt construction can be rotated during assembly and are fixed after tightening. The variants with plug-in connector, rotated can also be rotated freely after assembly. The seals and lubricants used are silicone-free.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 10 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 80 |
| Tesnilo | NBR |
| Zarobljena tesnila | Polyamide, glass fibre-reinforced (only parts in banjo bolt construction) |
| Navoj | M5 |
| Povezava | M5 female thread |
| B [mm] | 38.9 |
| C [mm] | 11.5 |
| a/f [mm] | 8 |
| Telo | Nickel-plated brass |
| Silicone-free | Yes |
| Ffunkcija | Discharge throttle (C) |
| Vrsta povezave | Screw connection |
| Design | Banjo bolt construction |
