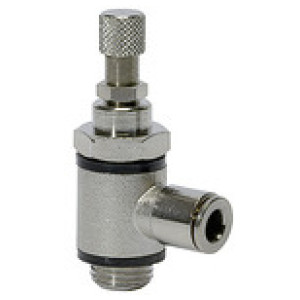

Nastavljivi dušilni ventil, z izpustom (C) potisni priključek
SKU: 106963RIE
EAN: 4047322180948

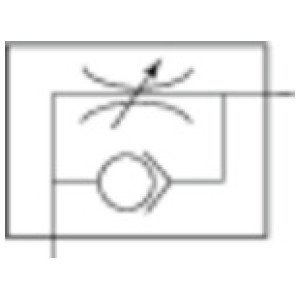

Throttle check valve, Discharge throttle (C) push-in connector hose 10, G 1/4, PN max. 10 bar, Temperature -20 °C to 80 °C
For throttling flow rates and regulating the piston speed of cylinders. Small dimensions, ideal for tight spaces. To be screwed directly into the valve or cylinder. The set flow rate can be locked via the lock nut in the version with knurled screw. The variants in banjo bolt construction can be rotated during assembly and are fixed after tightening. The variants with plug-in connector, rotated can also be rotated freely after assembly. The seals and lubricants used are silicone-free.
| Šifra | Navoj | Za cevi [mm] | a/f [mm] | C [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 106958RIE | G 1/8 | 4 | 14 | 20.6 | 42.4 | Čas dobave: Predvidoma 3 - 5 dni | 18,00 € |  | |
| 106957RIE | M5 | 6 | 8 | 21.7 | 38.9 | Čas dobave: Predvidoma 3 - 5 dni | 17,01 € | | |
| 106960RIE | G 1/8 | 8 | 14 | 23.7 | 42.4 | Čas dobave: Predvidoma 3 - 5 dni | 16,85 € | | |
| 106961RIE | G 1/4 | 6 | 17 | 24.2 | 51.4 | Čas dobave: Predvidoma 3 - 5 dni | 18,31 € | | |
| 106959RIE | G 1/8 | 6 | 14 | 22.7 | 42.4 | Čas dobave: Predvidoma 3 - 5 dni | 16,85 € | | |
| 106956RIE | M5 | 4 | 8 | 18.6 | 38.9 | Čas dobave: Predvidoma 3 - 5 dni | 17,01 € | | |
| 106962RIE | G 1/4 | 8 | 17 | 24.7 | 51.4 | Čas dobave: Predvidoma 3 - 5 dni | 18,64 € | | |
| 106963RIE | G 1/4 | 10 | 17 | 26.8 | 51.4 | Čas dobave: Predvidoma 3 - 5 dni | 19,13 € | |
Opis
Throttle check valve, Discharge throttle (C) push-in connector hose 10, G 1/4, PN max. 10 bar, Temperature -20 °C to 80 °C
For throttling flow rates and regulating the piston speed of cylinders. Small dimensions, ideal for tight spaces. To be screwed directly into the valve or cylinder. The set flow rate can be locked via the lock nut in the version with knurled screw. The variants in banjo bolt construction can be rotated during assembly and are fixed after tightening. The variants with plug-in connector, rotated can also be rotated freely after assembly. The seals and lubricants used are silicone-free.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 10 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 80 |
| Tesnilo | NBR |
| Zarobljena tesnila | Polyamide, glass fibre-reinforced (only parts in banjo bolt construction) |
| Navoj | G 1/4 |
| Za cevi [mm] | 10 |
| B [mm] | 51.4 |
| C [mm] | 26.8 |
| a/f [mm] | 17 |
| Telo | Nickel-plated brass |
| Silicone-free | Yes |
| Ffunkcija | Discharge throttle (C) |
| Vrsta povezave | Plug-in connector |
| Design | Banjo bolt construction |
