Natančni filter regulatorji, Brez barvnih kovin, 0.1-2 bar
SKU: 101217RIE
EAN: 4047322118378

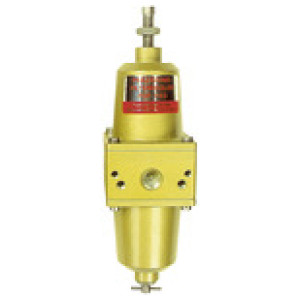

Precision filter regulator without pressure gauge, Free of non-ferrous metals, G 1/4, Control range 0.1 - 2 bar
Diaphragm pressure regulators containing no non-ferrous metals, with secondary venting, combined with
a centrifugal separator for applications requiring an extremely accurate working pressure.
Obrestno financiranje
- 19,22 € x 6 mesecev
- 38,02 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Min. krmilno območje [bar] | Max. krmilno območje [bar] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 101219RIE | 0.2 | 5 | Čas dobave: Predvidoma 3 - 5 dni | 104,74 € |  | |
| 101218RIE | 0.1 | 3 | Čas dobave: Predvidoma 3 - 5 dni | 104,74 € | | |
| 101217RIE | 0.1 | 2 | Čas dobave: Predvidoma 3 - 5 dni | 104,74 € | |
Opis
Precision filter regulator without pressure gauge, Free of non-ferrous metals, G 1/4, Control range 0.1 - 2 bar
Diaphragm pressure regulators containing no non-ferrous metals, with secondary venting, combined with
a centrifugal separator for applications requiring an extremely accurate working pressure.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 16 |
| Ohišje | Die-cast zinc |
| Tesnilo | NBR |
| Poraba zraka | Yes |
| Max. notranja poraba zraka | 0.2 l/min, depending on input pressure and control range |
| Rang filtra [µm] | 10 |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Pretok | 750 l/min |
| Navoj manometra | G 1/4 |
| Min. krmilno območje [bar] | 0.1 |
| Max. krmilno območje [bar] | 2 |

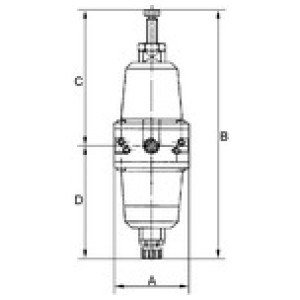

| A [mm] | 60.0 |
| B [mm] | 216.0 |
| C [mm] | 120.0 |
| D [mm] | 96.0 |
| Srednje | Micro-filtered, unoiled compressed air (0.01 µm) |
