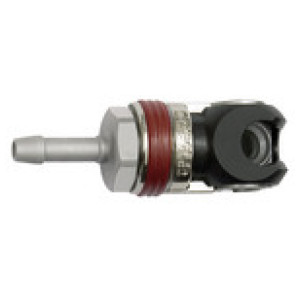

Nihajne varnostne sklopke I.D. 6, ISO 6150 C, ,Fi cevi I.D. 10
SKU: 141636RIE
EAN: 4047322567510
Swing safety coupling I.D. 6, ISO 6150 C, Steel, Sleeve I.D. 10, Operating pressure max. 25 bar, Temp. -20 °C to 100 °C
"Swing safety coupling with free passage.
The plug-in nipple is inserted into the coupling body and rotated by an approx. 90° motion to make the connection. As soon as the ""red ring"" clicks into the intended slot then a secure connection has been made. To release the connection again, the ""red ring"" must be pulled out and the plug-in nipple is swivelled to the stopper into the starting position. Venting is done during uncoupling through a vent hole on the back side of the coupling.
This coupling meets ISO standard DIN EN ISO 4414, EN 983.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, workshops, automotive, mining.
"| Šifra | Povezava | a/f [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 141635RIE | I.D. 8 | 19 | Čas dobave: Predvidoma 3 - 5 dni | 35,59 € |  | |
| 141634RIE | I.D. 6 | 20 | Čas dobave: Predvidoma 3 - 5 dni | 35,59 € | | |
| 141636RIE | I.D. 10 | 20 | Čas dobave: Predvidoma 3 - 5 dni | 35,59 € | |
Opis
Swing safety coupling I.D. 6, ISO 6150 C, Steel, Sleeve I.D. 10, Operating pressure max. 25 bar, Temp. -20 °C to 100 °C
"Swing safety coupling with free passage.
The plug-in nipple is inserted into the coupling body and rotated by an approx. 90° motion to make the connection. As soon as the ""red ring"" clicks into the intended slot then a secure connection has been made. To release the connection again, the ""red ring"" must be pulled out and the plug-in nipple is swivelled to the stopper into the starting position. Venting is done during uncoupling through a vent hole on the back side of the coupling.
This coupling meets ISO standard DIN EN ISO 4414, EN 983.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, workshops, automotive, mining.
"Tehnični podatki in specifikacije
| DN | 6 |
| Povezava | I.D. 10 |
| a/f [mm] | 20 |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
| Srednje | Compressed air, gases |
| Vtični profil | acc. ISO 6150 C |
| Delovni tlak | max. 25 bar / max. 16 bar when attaching / detaching |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 100 |
| Ohišje | Steel, QPQ treated |
| Tesnilo | NBR |
| Pretok | 820 l/min (air) |
| Rokav | Die-cast zinc, nickel-plated, red rubber coated |
| Navojni kos | Galvanised steel |
| Dolžina [mm] | 68.0 |
