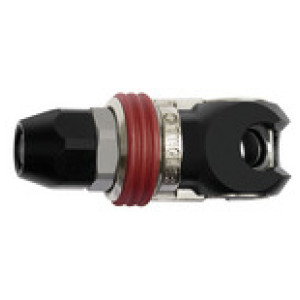

Nihajne varnostne sklopke I.D. 8, ISO 6150 C, , cev 8x12

SKU: 141694RIE
EAN: 4047322567787

Swing safety coupling I.D. 8, ISO 6150 C, Steel, Hose connection 8x12, Operating pressure max. 25 bar, Temp. -20 °C to 100 °C

"

Swing safety coupling with free passage.

The plug-in nipple is inserted into the coupling body and rotated by an approx. 90° motion to make the connection. As soon as the ""red ring"" clicks into the intended slot then a secure connection has been made. To release the connection again, the ""red ring"" must be pulled out and the plug-in nipple is swivelled to the stopper into the starting position. Venting is done during uncoupling through a vent hole on the back side of the coupling.

This coupling meets ISO standard DIN EN ISO 4414, EN 983.

These safety couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, workshops, automotive, mining.

"
Čas dobave: Predvidoma 3 - 5 dni
40,32 €
Primerjaj z ostalimi
Šifra Povezava Dolžina [mm] Zaloga Cena Nakup Natisni
141694RIE Hose connection 8x12 77.0
Čas dobave: Predvidoma 3 - 5 dni
40,32 € Natisni
141695RIE Hose connection 11x16 82.0
Čas dobave: Predvidoma 3 - 5 dni
40,32 € Natisni

Opis

Swing safety coupling I.D. 8, ISO 6150 C, Steel, Hose connection 8x12, Operating pressure max. 25 bar, Temp. -20 °C to 100 °C

"

Swing safety coupling with free passage.

The plug-in nipple is inserted into the coupling body and rotated by an approx. 90° motion to make the connection. As soon as the ""red ring"" clicks into the intended slot then a secure connection has been made. To release the connection again, the ""red ring"" must be pulled out and the plug-in nipple is swivelled to the stopper into the starting position. Venting is done during uncoupling through a vent hole on the back side of the coupling.

This coupling meets ISO standard DIN EN ISO 4414, EN 983.

These safety couplings are not suitable for direct attachment to pulsating tools.

We recommend using our vibration dampers, according to ISO 6150 § 7.1.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, workshops, automotive, mining.

"

Tehnični podatki in specifikacije

DN 8
Povezava Hose connection 8x12
a/f [mm] 24
Merjenje pretoka at 6 bar and Δp = 0.5 bar
Srednje Compressed air, gases
Vtični profil acc. ISO 6150 C
Delovni tlak max. 25 bar / max. 16 bar when attaching / detaching
Min. temperaturno območje [°C] -20
Max. temperaturno območje [°C] 100
Ohišje Steel, QPQ treated
Tesnilo NBR
Pretok 2300 l/min (air)
Rokav Die-cast zinc, nickel-plated, red rubber coated
Navojni kos Galvanised steel
Dolžina [mm] 77.0
