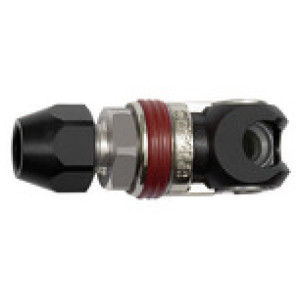

Nihajne varnostne spojke. I.D. 5.5 ARO 210, , cevni priklop 8x12 slika
Nihajne varnostne spojke. I.D. 5.5 ARO 210, , cevni priklop 8x12 slika

* slike so simbolične

Nihajne varnostne spojke. I.D. 5.5 ARO 210, , cevni priklop 8x12

SKU: 141611RIE
EAN: 4047322567374

Swing safety coupling I.D. 5.5, ARO 210, Steel, Hose connection 8x12, Operating pressure max. 25 bar, Temp. -20 °C to 100 °C

"

Swing safety coupling with free passage.

The plug-in nipple is inserted into the coupling body and rotated by an approx. 90° motion to make the connection. As soon as the ""red ring"" clicks into the intended slot then a secure connection has been made. To release the connection again, the ""red ring"" must be pulled out and the plug-in nipple is swivelled to the stopper into the starting position. Venting is done during uncoupling through a vent hole on the back side of the coupling.

This coupling meets ISO standard DIN EN ISO 4414, EN 983.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, workshops, automotive.

"
Čas dobave: Predvidoma 3 - 5 dni
33,45 €
Primerjaj z ostalimi
Šifra Povezava Dolžina [mm] Zaloga Cena Nakup Natisni
141611RIE Hose connection 8x12 66.0
Čas dobave: Predvidoma 3 - 5 dni
33,45 € Natisni
141610RIE Hose connection 6.5x10 63.0
Čas dobave: Predvidoma 3 - 5 dni
33,45 € Natisni

Opis

Swing safety coupling I.D. 5.5, ARO 210, Steel, Hose connection 8x12, Operating pressure max. 25 bar, Temp. -20 °C to 100 °C

"

Swing safety coupling with free passage.

The plug-in nipple is inserted into the coupling body and rotated by an approx. 90° motion to make the connection. As soon as the ""red ring"" clicks into the intended slot then a secure connection has been made. To release the connection again, the ""red ring"" must be pulled out and the plug-in nipple is swivelled to the stopper into the starting position. Venting is done during uncoupling through a vent hole on the back side of the coupling.

This coupling meets ISO standard DIN EN ISO 4414, EN 983.

Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, workshops, automotive.

"

Tehnični podatki in specifikacije

DN 5.5
Povezava Hose connection 8x12
a/f [mm] 20
Merjenje pretoka at 6 bar and Δp = 0.5 bar
Srednje Compressed air, gases
Vtični profil acc. ARO 210
Delovni tlak max. 25 bar / max. 16 bar when attaching / detaching
Min. temperaturno območje [°C] -20
Max. temperaturno območje [°C] 100
Ohišje Steel, QPQ treated
Tesnilo NBR
Pretok 820 l/min (air)
Rokav Die-cast zinc, nickel-plated, red rubber coated
Navojni kos Galvanised steel
Dolžina [mm] 66.0
