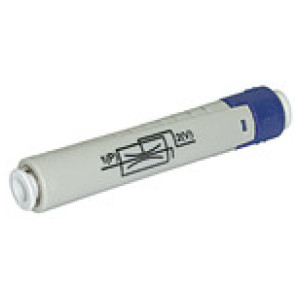

Notranji ejektor »SLP«, velikost šobe 0.7 mm
SKU: 108377RIE
EAN: 4047322198998
Inline ejector »SLP«, Nozzle size 0.7 mm, Compressed air connection 4 mm, Vacuum connection 4 mm, PN max. 4.5 bar, Plastic
For vacuum generation directly at the point of use.
For direct installation between the suction pad and the compressed air supply.
Purely pneumatic vacuum generator that operates on the Venturi principle. Compressed air enters the ejector and flows through a nozzle. This results in a vacuum immediately behind the nozzle outlet, and air is drawn in through the vacuum inlet. This air and the driving air leave the ejector and enter the atmosphere via the exhaust air outlet.
Properties
- Vacuum generator with a high maximum vacuum value (85%)
- No moving parts, which means no wear and no maintenance
- Extremely space-saving installation, ideal where space is restricted
- Minimum compressed air consumption
- Low noise output
Applications
- Direct installation on the suction pad by screwing / plugging into the distribution beam
- Handling all kinds of workpiece
| Šifra | Velikost šobe [mm] | Max. stopnja sesanja [l/min] | Poraba zraka med evakuacijo [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 108377RIE | 0.7 | 16 | 25 | Čas dobave: Predvidoma 3 - 5 dni | 48,68 € |  | |
| 108376RIE | 0.5 | 8 | 13 | Čas dobave: Predvidoma 3 - 5 dni | 45,42 € | |
Opis
Inline ejector »SLP«, Nozzle size 0.7 mm, Compressed air connection 4 mm, Vacuum connection 4 mm, PN max. 4.5 bar, Plastic
For vacuum generation directly at the point of use.
For direct installation between the suction pad and the compressed air supply.
Purely pneumatic vacuum generator that operates on the Venturi principle. Compressed air enters the ejector and flows through a nozzle. This results in a vacuum immediately behind the nozzle outlet, and air is drawn in through the vacuum inlet. This air and the driving air leave the ejector and enter the atmosphere via the exhaust air outlet.
Properties
- Vacuum generator with a high maximum vacuum value (85%)
- No moving parts, which means no wear and no maintenance
- Extremely space-saving installation, ideal where space is restricted
- Minimum compressed air consumption
- Low noise output
Applications
- Direct installation on the suction pad by screwing / plugging into the distribution beam
- Handling all kinds of workpiece
Tehnični podatki in specifikacije
| Ohišje | Plastic |
| Max. obratovalni tlak [bar] | 4.5 |
| Velikost šobe [mm] | 0.7 |
| Povezava | Plug connection |
| Dovod stisnjenega zraka | 4 mm |
| Dovod vakuuma | 4 mm |
| Izpust izpušnega zraka | - |
| Sistem šobe | Aluminium |
| Stopnja evakuacije [%] | 85 |
| Max. stopnja sesanja [l/min] | 16 |
| Poraba zraka med evakuacijo [l/min] | 25 |
| Dolžina [mm] | 57.0 |
| Teža [g] | 5.0 |
