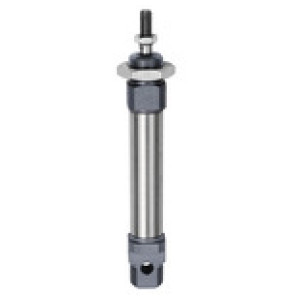

Okrogli cilinder, enosmerni, bat Ø 8, hod 50, M5 slika

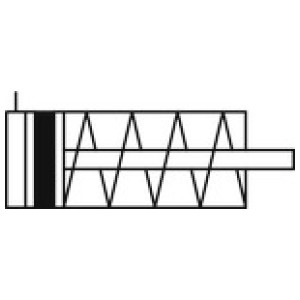

Okrogli cilinder, enosmerni, bat Ø 8, hod 50, M5 slika

* slike so simbolične

Okrogli cilinder, enosmerni, bat Ø 8, hod 50, M5

SKU: 105824RIE
EAN: 1110080050XN

Round cylinder, ISO 6432, single-acting, Magnet, Piston Ø 8, Stroke 50, M5, Working pressure max. 10 bar, Temp. -10 °C to 80 °C

Single and double-acting cylinders, with magnetic piston.

Suitable for filtered, unlubricated or lubricated compressed air.

If lubrication is used, it must be continuous.

Čas dobave: Predvidoma 3 - 5 dni
Pošljite povpraševanje
Primerjaj z ostalimi

Opis

Round cylinder, ISO 6432, single-acting, Magnet, Piston Ø 8, Stroke 50, M5, Working pressure max. 10 bar, Temp. -10 °C to 80 °C

Single and double-acting cylinders, with magnetic piston.

Suitable for filtered, unlubricated or lubricated compressed air.

If lubrication is used, it must be continuous.

Tehnični podatki in specifikacije

Min. nastavljeni tlak [bar] 0.8
Magnet with magnet
Ffunkcija single-acting
Starting position pressureless in the retracted position
Standard acc. to ISO 6432
Cushioning non-cushioned
Gewinde Kolbenstange male piston rod
Max. delovni tlak [bar] 10
Min. temperaturno območje [°C] -10
Max. temperaturno območje [°C] 80
Tesnilo NBR
Ovoj Stainless steel 1.4301
Oblika Flanged joint between stainless steel barrel and heads
Bat Ø [mm] 8
Stroke [mm] 50
Povezava M5
Batnica C45 steel, hard chrome-plated
Navoj na batnici M4
Bat Synthetic (acetal) resin
