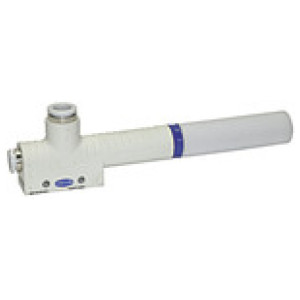

Osnovni ejektor »SBP«, z dušilko, velikost šobe 0.7 mm
SKU: 108379RIE
EAN: 4047322199506
Basic ejector »SBP«, High under-pressure, Silencer, Nozzle size 0.7 mm, Compressed air / vacuum connection 4 mm, PN max. 4.5 bar
Purely pneumatic vacuum generator that operates on the Venturi principle.
Compressed air enters the ejector at A and flows through the nozzle B. This results in a vacuum immediately behind the nozzle outlet, and air is drawn in through the vacuum inlet D. This air and the driving air leave the ejector via the silencer C.
Properties:
- Vacuum generator without control valves or system monitoring functions,?with a high maximum vacuum value (85%)
- No moving parts, which means no wear and no maintenance
- Maximum suction capacity with minimum compressed air consumption
- Minimum size, low weight
- For decentralised vacuum generation in highly dynamic processes
Applications:
For universal use in lightweight gripper systems to handle air-tight workpieces
as well as for automatic separation systems, e.g. in the plastics, electronics
and packaging industries. Also ideal for the construction of ejector blocks for
decentralised control of suction pads.
Obrestno financiranje
- 19,55 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Velikost šobe [mm] | Dovod stisnjenega zraka | Dovod vakuuma | Teža [g] | Max. stopnja sesanja [l/min] | Premer [mm] | Poraba zraka med evakuacijo [l/min] | Višina [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 108378RIE | 0.5 | 4 mm | 4 mm | 7.5 | 8 | 10.0 | 14 | 28.0 | 71.0 | Čas dobave: Predvidoma 3 - 5 dni | 52,28 € |  | |
| 108380RIE | 1 | 6 mm | 8 mm | 22.0 | 37 | 15.0 | 48 | 40.0 | 97.0 | Čas dobave: Predvidoma 3 - 5 dni | 56,94 € | | |
| 108381RIE | 1.5 | 6 mm | 8 mm | 22.0 | 71 | 15.0 | 105 | 40.0 | 97.0 | Čas dobave: Predvidoma 3 - 5 dni | 61,63 € | | |
| 108382RIE | 2 | 8 mm | 10 mm | 50.0 | 127 | 20.0 | 197 | 46.0 | 168.0 | Čas dobave: Predvidoma 3 - 5 dni | 145,25 € | | |
| 108383RIE | 2.5 | 8 mm | 10 mm | 50.0 | 215 | 20.0 | 311 | 46.0 | 168.0 | Čas dobave: Predvidoma 3 - 5 dni | 158,61 € | | |
| 108379RIE | 0.7 | 4 mm | 4 mm | 7.5 | 16 | 10.0 | 22 | 28.0 | 71.0 | Čas dobave: Predvidoma 3 - 5 dni | 54,05 € | |
Opis
Basic ejector »SBP«, High under-pressure, Silencer, Nozzle size 0.7 mm, Compressed air / vacuum connection 4 mm, PN max. 4.5 bar
Purely pneumatic vacuum generator that operates on the Venturi principle.
Compressed air enters the ejector at A and flows through the nozzle B. This results in a vacuum immediately behind the nozzle outlet, and air is drawn in through the vacuum inlet D. This air and the driving air leave the ejector via the silencer C.
Properties:
- Vacuum generator without control valves or system monitoring functions,?with a high maximum vacuum value (85%)
- No moving parts, which means no wear and no maintenance
- Maximum suction capacity with minimum compressed air consumption
- Minimum size, low weight
- For decentralised vacuum generation in highly dynamic processes
Applications:
For universal use in lightweight gripper systems to handle air-tight workpieces
as well as for automatic separation systems, e.g. in the plastics, electronics
and packaging industries. Also ideal for the construction of ejector blocks for
decentralised control of suction pads.
Tehnični podatki in specifikacije
| Ohišje | Plastic (impact-resistant) |
| Max. obratovalni tlak [bar] | 4.5 |
| Dušilec | Plastic |
| Velikost šobe [mm] | 0.7 |
| Povezava | Push-in coupling |
| Dovod stisnjenega zraka | 4 mm |
| Dovod vakuuma | 4 mm |
| Stopnja evakuacije [%] | 85 |
| Max. stopnja sesanja [l/min] | 16 |
| Poraba zraka med evakuacijo [l/min] | 22 |
| Dolžina [mm] | 71.0 |
| Premer [mm] | 10.0 |
| Višina [mm] | 28.0 |
| Teža [g] | 7.5 |
