Plug nipple »metallica«, hose exterior Ø 12, nickel-plated brass  slika
Plug nipple »metallica«, hose exterior Ø 12, nickel-plated brass  slika

* slike so simbolične

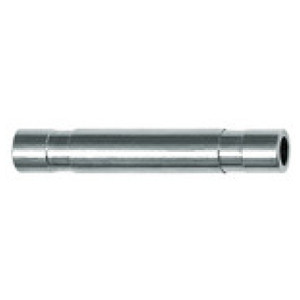

Plug nipple »metallica«, hose exterior Ø 12, nickel-plated brass

SKU: 142793RIE
EAN: 4047322559393

Plug nipple »metallica«,hose exterior Ø12, Working pressure -0.98 to 16 bar, Operating temp. -20 °C to 80 °C, nickel-plated brass

All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion, all fittings in this series can thus also be used at high temperatures (medium compressed air).

Only recommended for use in combination with quick connectors of the »metallica« series. Suitability testing for use with other series is the responsibility of the user.

Ni na zalogi
Pošljite povpraševanje
Primerjaj z ostalimi
Šifra Za cevi O.D. [mm] L1 [mm] Zaloga Cena Nakup Natisni
129491RIE 14 53.0
Ni na zalogi
? Povpraševanje Natisni
142789RIE 8 40.0
Ni na zalogi
? Povpraševanje Natisni
142787RIE 4 35.0
Ni na zalogi
? Povpraševanje Natisni
142788RIE 6 36.5
Ni na zalogi
? Povpraševanje Natisni
142790RIE 10 45.5
Ni na zalogi
? Povpraševanje Natisni
142793RIE 12 48.0
Ni na zalogi
? Povpraševanje Natisni

Opis

Plug nipple »metallica«,hose exterior Ø12, Working pressure -0.98 to 16 bar, Operating temp. -20 °C to 80 °C, nickel-plated brass

All parts with a parallel thread are supplied with an FPM O-ring while the conical threads are coated with preCOTE 5 dispersion, all fittings in this series can thus also be used at high temperatures (medium compressed air).

Only recommended for use in combination with quick connectors of the »metallica« series. Suitability testing for use with other series is the responsibility of the user.

Tehnični podatki in specifikacije

Serija metallica
Min. delovni tlak [bar] -0.98
Max. delovni tlak [bar] 16
Min. delovna temperatura [°C] -20
Max. delovna temperatura [°C] 80
Za cevi O.D. [mm] 12
L1 [mm] 48.0
Material Nickel-plated brass
