Pnevmatski izpustni kontrolni ventil lineonline za  Ø 8 mm slika
Pnevmatski izpustni kontrolni ventil lineonline za  Ø 8 mm slika
Pnevmatski izpustni kontrolni ventil lineonline za  Ø 8 mm slika

* slike so simbolične

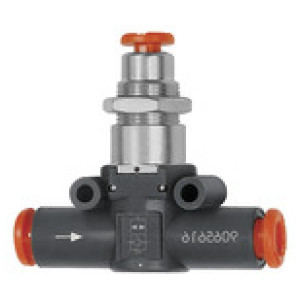

Pnevmatski izpustni kontrolni ventil lineonline za Ø 8 mm

SKU: 106820RIE
EAN: 4047322390125

Pneumatically releasable check valve »lineonline«, Hose - hose, for hose Ø 8 mm, Operating pressure max. 10 bar

For stopping and positioning the cylinder. If a signal is present at the pilot port, air can flow to and from the cylinder. If no pilot signal is present, the cylinder exhaust port is shut off by the stop valve. The cylinder is stopped.

Čas dobave 3 - 5 dni
34,44 €
Primerjaj z ostalimi

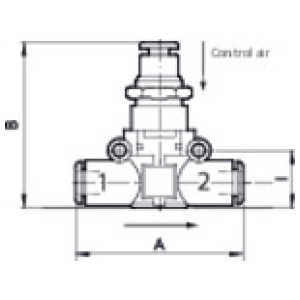

Šifra Za cevi Ø [mm] I [mm] B [mm] A [mm] Pretok pri 6,3 bar in Δp 1,0 bar [Nl/min] Zaloga Cena Nakup Natisni
106819RIE 6 14.6 43.2 49.4 400
Čas dobave 3 - 5 dni
33,83 € Natisni
106820RIE 8 18.7 49.7 57.3 790
Čas dobave 3 - 5 dni
34,44 € Natisni

Opis

Pneumatically releasable check valve »lineonline«, Hose - hose, for hose Ø 8 mm, Operating pressure max. 10 bar

For stopping and positioning the cylinder. If a signal is present at the pilot port, air can flow to and from the cylinder. If no pilot signal is present, the cylinder exhaust port is shut off by the stop valve. The cylinder is stopped.

Tehnični podatki in specifikacije

Min. temperaturno območje [°C] -20
Max. obratovalni tlak [bar] 10
Max. temperaturno območje [°C] 60
Tesnilo NBR
Telo Technopolymer
Notranji deli Nickel-plated brass, brass, technopolymer, stainless steel

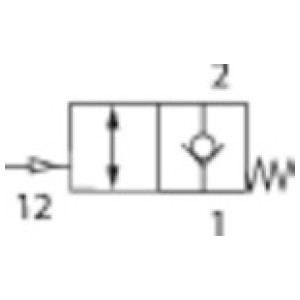

Pnevmatski simboli On housing
Nadzor zraka 4 mm
Za cevi Ø [mm] 8
A [mm] 57.3
B [mm] 49.7
I [mm] 18.7
Pretok pri 6,3 bar in Δp 1,0 bar [Nl/min] 790
