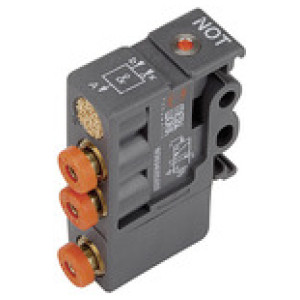

Pnevmatski logični element, NI, Tehno-polymer, DN 2.7
SKU: 106707RIE
EAN: W3604000003
Pneumatic logic elements, NOT, Techno-polymer, DN 2.7, Temperature range -10 °C to 60 °C, Working pressure 0.4 to 6 bar
Pneumatic logic elements are available with five different functions: OR, AND, NOT, YES, MEMORY.
All elements have an adapter for the ?-rail (DIN EN 50022) integral with the body.
Čas dobave: Predvidoma 3 - 5 dni
38,09 €
| Šifra | Ffunkcija | Ponastaviti | Dolžina [mm] | Višina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 106705RIE | OR | by compressed air | 38.5 | 40.0 | Čas dobave: Predvidoma 3 - 5 dni | 23,02 € |  | |
| 106708RIE | YES | By mechanical spring | 55.2 | 40.0 | Čas dobave: Predvidoma 3 - 5 dni | 40,46 € | | |
| 106709RIE | MEMORY | by compressed air | 89.5 | 41.0 | Čas dobave: Predvidoma 3 - 5 dni | 67,94 € | | |
| 106706RIE | AND | by compressed air | 38.5 | 40.0 | Čas dobave: Predvidoma 3 - 5 dni | 25,05 € | | |
| 106707RIE | NOT | By mechanical spring | 55.2 | 40.0 | Čas dobave: Predvidoma 3 - 5 dni | 38,09 € | |
Opis
Pneumatic logic elements, NOT, Techno-polymer, DN 2.7, Temperature range -10 °C to 60 °C, Working pressure 0.4 to 6 bar
Pneumatic logic elements are available with five different functions: OR, AND, NOT, YES, MEMORY.
All elements have an adapter for the ?-rail (DIN EN 50022) integral with the body.
Tehnični podatki in specifikacije
| Material | Technopolymer |
| Tesnilo | NBR |
| Tuljava | Aluminium |
| Pretok | 100 l/min (at 6 bar and ?p = 1 bar) |
| Za cevi O.D. [mm] | 4 |
| Dolžina [mm] | 55.2 |
| Višina [mm] | 40.0 |
| Nominalni Ø [mm] | 2.7 |
| Ffunkcija | NOT |
| Ponastaviti | By mechanical spring |
