* slike so simbolične
Pregradni prik. value line, M20x1, za zun. Ø 12 mm
SKU: 115951RIE
EAN: 4047322183604

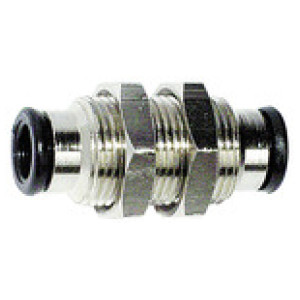

Bulkhead fitting »value line«, M20x1, for hose exterior Ø 12 mm, Working pressure -0.98 to 16 bar, nickel-plated brass
Low-priced yet very high-quality series of push-in fittings made of nickel-plated brass.
Compact, space-saving, lightweight design. An O-ring in the fillet at the end of the thread guarantees a tight connection for all male thread parts, even on rough surfaces.
| Šifra | Navoj | Rokav | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 115948RIE | M14x1 | Hostaform | 6 | 17 | 33.5 | Čas dobave: Predvidoma 3 - 5 dni | 4,18 € |  | |
| 115951RIE | M20x1 | Black nickel-plated | 12 | 24 | 42.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,19 € | | |
| 115949RIE | M16x1 | Hostaform | 8 | 18 | 37.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,33 € | | |
| 115947RIE | M10x1 | Hostaform | 4 | 13 | 32.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,18 € | | |
| 115950RIE | M17x1 | Black nickel-plated | 10 | 20 | 39.5 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
Opis
Bulkhead fitting »value line«, M20x1, for hose exterior Ø 12 mm, Working pressure -0.98 to 16 bar, nickel-plated brass
Low-priced yet very high-quality series of push-in fittings made of nickel-plated brass.
Compact, space-saving, lightweight design. An O-ring in the fillet at the end of the thread guarantees a tight connection for all male thread parts, even on rough surfaces.
Tehnični podatki in specifikacije
| Serija | value line |
| Min. delovni tlak [bar] | -0.98 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 80 |
| Tesnilo | NBR, silicone-free |
| Priporočena cev | PA, PU |
| Vpenjalo | Stainless steel AISI 316 |
| Rokav | Black nickel-plated |
| Navoj | M20x1 |
| Za cevi O.D. [mm] | 12 |

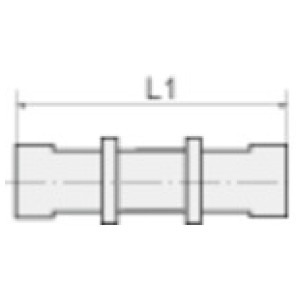

| L1 [mm] | 42.0 |
| a/f [mm] | 24 |
| Material | Nickel-plated brass |
