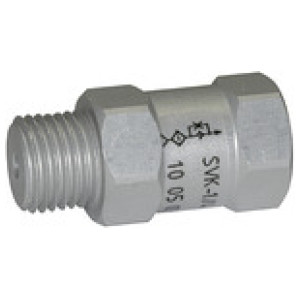

Pretočni ventil, ET zgoraj, aluminij, krogelni ventil
SKU: 108427RIE
EAN: 4047322203968
Flow valve, ET top, Required suction capacity pu = 0.3 bar 8.1 l/min, pu = -0.6 bar l/min 9.0, Aluminium, Ball seat valve
Check valves close the vacuum line if the suction pad is not covered, thus maintaining the vacuum. The valves are protected against dirt by a replaceable sieve. This valve series is suitable for all suction pads in our standard range.
Obrestno financiranje
- 13,00 € x 6 mesecev
- 25,71 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj 1 | Navoj 2 | Zahtevana stopnja evakuacije za pu = -0.3 bar [l/min] | Zahtevana stopnja evakuacije za pu = -0.6 bar [l/min] | Teža [g] | Dolžina [mm] | Max. Izpušna pretočna hitrost [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 108425RIE | G 1/8 ET | G 1/8 IT | 2.3 | 2.5 | 11.2 | 26.0 | 310 | Čas dobave: Predvidoma 3 - 5 dni | 39,87 € |  | |
| 108424RIE | M5 ET | M5 IT | 1.2 | 1.3 | 2.2 | 15.5 | 80 | Čas dobave: Predvidoma 3 - 5 dni | 27,82 € | | |
| 108426RIE | G 1/4 ET | G 1/4 IT | 2.9 | 3.4 | 17.5 | 26.0 | 340 | Čas dobave: Predvidoma 3 - 5 dni | 44,94 € | | |
| 108427RIE | G 1/2 ET | G 1/2 IT | 8.1 | 9 | 47.4 | 29.0 | 790 | Čas dobave: Predvidoma 3 - 5 dni | 70,67 € | |
Opis
Flow valve, ET top, Required suction capacity pu = 0.3 bar 8.1 l/min, pu = -0.6 bar l/min 9.0, Aluminium, Ball seat valve
Check valves close the vacuum line if the suction pad is not covered, thus maintaining the vacuum. The valves are protected against dirt by a replaceable sieve. This valve series is suitable for all suction pads in our standard range.
Tehnični podatki in specifikacije
| Ohišje | Aluminium |
| Vrsta gradnje | Ball seat valve (ball in brass seat) |
| Dolžina [mm] | 29.0 |
| Navoj 1 | G 1/2 ET |
| Navoj 2 | G 1/2 IT |
| Teža [g] | 47.4 |
| Zahtevana stopnja evakuacije za pu = -0.3 bar [l/min] | 8.1 |
| Zahtevana stopnja evakuacije za pu = -0.6 bar [l/min] | 9 |
| Max. Izpušna pretočna hitrost [l/min] | 790 |
