* slike so simbolične

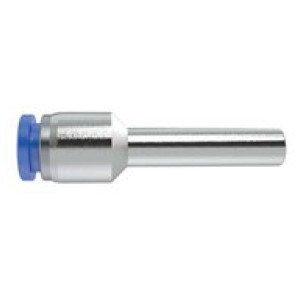

Pritisni prik., cev Ø3, vtič 4, ''Blue serija" mini
SKU: 109102RIE
EAN: 4047322392273
Straight push-in connector, reducing, for hose exterior Ø 3 mm, plug nipple Ø 4 mm, pmax. 10 bar, »Blue Series« miniPush-in fittings series manufactured in plastic and nickel-plated brass.
Space-saving miniature design.
Čas dobave: Predvidoma 3 - 5 dni
5,39 €

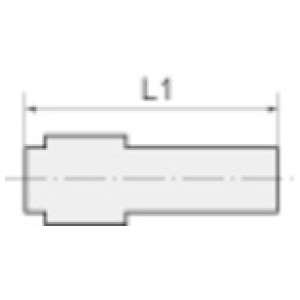

| Šifra | Za cevi O.D. [mm] | Priključek [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 109102RIE | 3 | 4 | 28.8 | Čas dobave: Predvidoma 3 - 5 dni | 5,39 € |  | |
| 109103RIE | 4 | 6 | 32.2 | Čas dobave: Predvidoma 3 - 5 dni | 5,05 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
Space-saving miniature design.
Tehnični podatki in specifikacije
| Serija | Blue series mini |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 60 |
| Tesnilo | NBR |
| Srednje | Compressed air |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Za cevi O.D. [mm] | 3 |
| L1 [mm] | 28.8 |
| Priključek [mm] | 4 |
| Material | Nickel-plated brass |
