* slike so simbolične

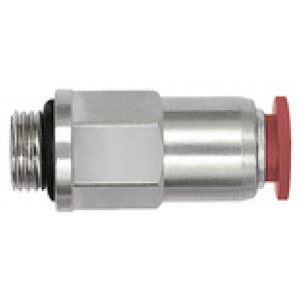

Ravni protipovratni ventil blue serija, navoj na cev, M5
SKU: 151587RIE
EAN: 4047322594530
Straight Check valve »Blue Series«, Thread to hose, M5 o., for hose exterior Ø 4 mm, pmax 10 bar, sleeve redThe non-return function of these push-in fittings prevents the air from flowing back, the unidirectional design means air flow is only possible in one direction.
These valves are available with air flow from the port to the tube or from the tube to the port.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Ravni protipovratni ventil blue serija, navoj na cev, M5
Material: Plastic and nickel-plated brass
Priporočena cev: PU or PA (nylon)
Rokav: Plastic red
Serija: Blue series
Srednje: Compressed air
Standardni navoj: DIN 13-1
Priporočena cev: PU or PA (nylon)
Rokav: Plastic red
Serija: Blue series
Srednje: Compressed air
Standardni navoj: DIN 13-1
| Šifra | Navoj | Standardni navoj | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 151587RIE | M5 | DIN 13-1 | 4 | 10 | 31.4 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje |  |
| 151352RIE | G 1/4 | DIN EN ISO 228-1 | 8 | 15 | 36.9 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
Opis
The non-return function of these push-in fittings prevents the air from flowing back, the unidirectional design means air flow is only possible in one direction.
These valves are available with air flow from the port to the tube or from the tube to the port.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Min. tlak odpiranja [bar] | 0.2 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 60 |
| Srednje | Compressed air |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic red |
| Navoj | M5 |
| Za cevi O.D. [mm] | 4 |
| L1 [mm] | 31.4 |
| a/f [mm] | 10 |
| Standardni navoj | DIN 13-1 |
| Material | Plastic and nickel-plated brass |
