Ravni protipovratni ventil Blue serija, Vtični prik., cev Ø 8
SKU: 151530RIE
EAN: 4047322593861

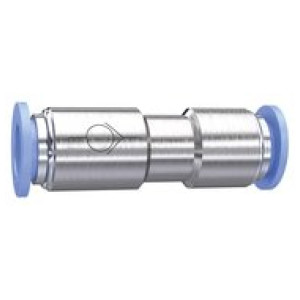

Straight check valve »Blue Series«, Plug connector, for hose exterior Ø 8 mm, pmax 10 barThe non-return function of these push-in fittings prevents the air from flowing back, the unidirectional design means air flow is only possible in one direction.
These valves are available with air flow from the port to the tube or from the tube to the port.
Na zalogi - preveri zalogo po poslovalnicah
Zaloga po poslovalnicah
- Ljubljana Na zalogi
- Maribor Na zalogi
8,48 €
| Šifra | Za cevi O.D. [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 151528RIE | 4 | 43.0 | Na zalogi | 7,86 € |  | |
| 151530RIE | 8 | 53.5 | Na zalogi | 8,48 € | | |
| 151529RIE | 6 | 46.0 | Na zalogi | 7,86 € | | |
| 151532RIE | 12 | 67.0 | Na zalogi | 12,71 € | | |
| 151531RIE | 10 | 61.5 | Čas dobave 3 - 5 dni | 11,33 € | |
Opis
The non-return function of these push-in fittings prevents the air from flowing back, the unidirectional design means air flow is only possible in one direction.
These valves are available with air flow from the port to the tube or from the tube to the port.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Min. tlak odpiranja [bar] | 0.2 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 60 |
| Tesnilo | NBR |
| Srednje | Compressed air |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic blue |
| Za cevi O.D. [mm] | 8 |
| L1 [mm] | 53.5 |
| Material | Nckel-plated brass |
