* slike so simbolične

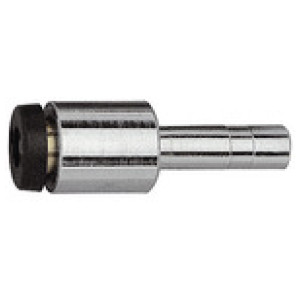

Ravni vtični konekt., rdeča. 12 mm, klik klak
SKU: 108779RIE
EAN: 4047322272193
Straight push-in connector, Plug nipple reducing 12 mm, »click-clock«, for hose exterior Ø 8 mm, Working pressure -0.99 to 16 bar
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Only recommended for use in combination with quick-connect fittings of the "click-clock" series.
The suitability test for use with other series is the responsibility of the user.
Povpraševanje
Material: Nickel-plated brass
Priporočena cev: PA, PU
Rokav: Hostaform
Serija: click-clock
Vpenjalni obroč: Stainless steel
| Šifra | Rokav | Za cevi O.D. [mm] | Priključek [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 108780RIE | Hostaform | 10 | 12 | 44.3 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 108781RIE | Hostaform | 10 | 14 | 44.3 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 108782RIE | Hostaform | 12 | 14 | 50.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 108774RIE | Hostaform | 4 | 8 | 28.7 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 108772RIE | Hostaform | 4 | 6 | 29.9 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 108775RIE | Hostaform | 5 | 8 | 34.5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 108777RIE | Hostaform | 6 | 10 | 36.2 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 108776RIE | Hostaform | 6 | 8 | 31.9 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 108773RIE | Hostaform | 5 | 6 | 36.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 108771RIE | Nickel-plated brass | 3 | 4 | 26.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 108778RIE | Hostaform | 8 | 10 | 40.8 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 108779RIE | Hostaform | 8 | 12 | 40.1 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Straight push-in connector, Plug nipple reducing 12 mm, »click-clock«, for hose exterior Ø 8 mm, Working pressure -0.99 to 16 bar
The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.
Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Only recommended for use in combination with quick-connect fittings of the "click-clock" series.
The suitability test for use with other series is the responsibility of the user.
Tehnični podatki in specifikacije
| Serija | click-clock |
| Min. delovni tlak [bar] | -0.99 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 80 |
| Priporočena cev | PA, PU |
| Rokav | Hostaform |
| Vpenjalni obroč | Stainless steel |
| Za cevi O.D. [mm] | 8 |

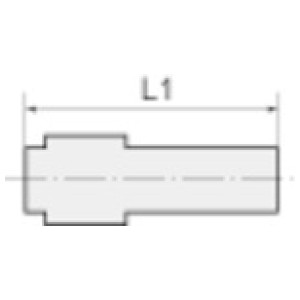

| L1 [mm] | 40.1 |
| Priključek [mm] | 12 |
| Material | Nickel-plated brass |
