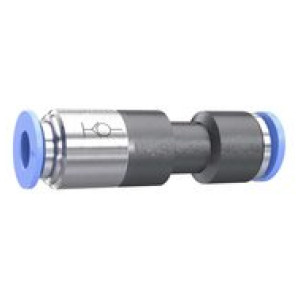

Ravni vtični konektor »blue serija«, samozaporni, cev Ø 12
SKU: 151489RIE
EAN: 4047322593458

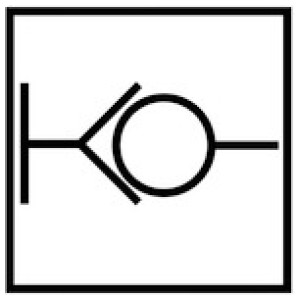

Straight push-in connector »Blue Series«, Self-locking, for hose exterior Ø 12 mm, pmax 10 barThe air supply is completely shut off as soon as the hose is disconnected from the union.
The flow rate is only guaranteed if the hose is securely inserted.
Na zalogi - preveri zalogo po poslovalnicah
Zaloga po poslovalnicah
- Ljubljana Na zalogi
- Maribor Na zalogi
14,81 €
| Šifra | Za cevi O.D. [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 151485RIE | 4 | 46.0 | Na zalogi | 5,67 € |  | |
| 151486RIE | 6 | 48.0 | Na zalogi | 6,28 € | | |
| 151488RIE | 10 | 61.0 | Na zalogi | 12,49 € | | |
| 151487RIE | 8 | 56.0 | Na zalogi | 7,45 € | | |
| 151489RIE | 12 | 66.0 | Na zalogi | 14,81 € | |
Opis
The air supply is completely shut off as soon as the hose is disconnected from the union.
The flow rate is only guaranteed if the hose is securely inserted.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 60 |
| Tesnilo | NBR |
| Srednje | Compressed air |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic blue |
| Za cevi O.D. [mm] | 12 |

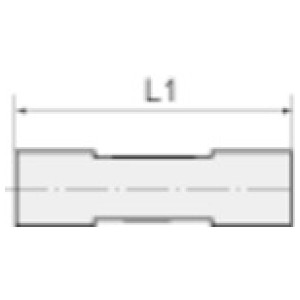

| L1 [mm] | 66.0 |
| Material | Plastic and nickel-plated brass |
