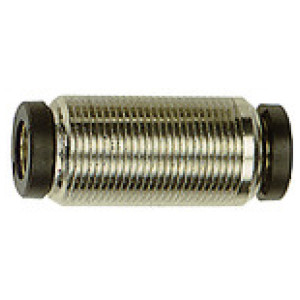

Ravni vtični konektor »klik klak« M11x1, cev ext. Ø 4 slika
Ravni vtični konektor »klik klak« M11x1, cev ext. Ø 4 slika

* slike so simbolične

Ravni vtični konektor »klik klak« M11x1, cev ext. Ø 4

SKU: 108721RIE
EAN: 4047322209076

Straight push-in connector »click-clock«, M11x1, for hose exterior Ø 4 mm, Working pressure -0.99 to 16 bar, nickel-plated brass

The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.

Advantages of this new, optimised series:

  • Much easier connection and disconnection of the hose, even with repeated mounting
  • Can also be used for non-calibrated hoses
  • Suitable for vacuum operation

Čas dobave: Predvidoma 3 - 5 dni
3,87 €
Primerjaj z ostalimi
Šifra Navoj Rokav Za cevi O.D. [mm] L1 [mm] Zaloga Cena Nakup Natisni
108724RIE M15x1.0 Hostaform 8 35.7
Čas dobave: Predvidoma 3 - 5 dni
4,54 € Natisni
108722RIE M14x1.0 Hostaform 5 33.5
Čas dobave: Predvidoma 3 - 5 dni
4,79 € Natisni
108726RIE M20x1.0 Hostaform 12 39.7
Čas dobave: Predvidoma 3 - 5 dni
6,93 € Natisni
108727RIE M24x1.0 Hostaform 14 45.9
Čas dobave: Predvidoma 3 - 5 dni
8,20 € Natisni
108720RIE M8x0.75 Nickel-plated brass 3 18.4
Čas dobave: Predvidoma 3 - 5 dni
4,62 € Natisni
108725RIE M17x1.0 Hostaform 10 39.2
Čas dobave: Predvidoma 3 - 5 dni
6,40 € Natisni
108723RIE M13x1.0 Hostaform 6 33.0
Čas dobave: Predvidoma 3 - 5 dni
4,05 € Natisni
108721RIE M11x1.0 Hostaform 4 30.6
Čas dobave: Predvidoma 3 - 5 dni
3,87 € Natisni

Opis

Straight push-in connector »click-clock«, M11x1, for hose exterior Ø 4 mm, Working pressure -0.99 to 16 bar, nickel-plated brass

The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.

Advantages of this new, optimised series:

  • Much easier connection and disconnection of the hose, even with repeated mounting
  • Can also be used for non-calibrated hoses
  • Suitable for vacuum operation

Tehnični podatki in specifikacije

Serija click-clock
Min. delovni tlak [bar] -0.99
Max. delovni tlak [bar] 16
Min. delovna temperatura [°C] -20
Max. delovna temperatura [°C] 80
Priporočena cev PA, PU
Rokav Hostaform
Vpenjalni obroč Stainless steel
Navoj M11x1.0
Za cevi O.D. [mm] 4

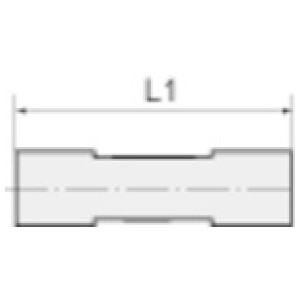

L1 [mm] 30.6
Material Nickel-plated brass
