Ravni vtični konektor pregradni »blue serija«, M14x1.25
SKU: 135758RIE
EAN: 4047322498944

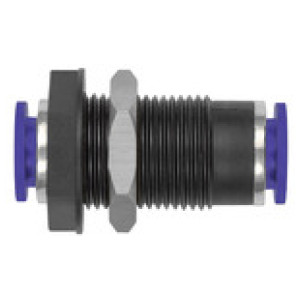

Straight push-in bulkhead connector »Blue Series«, M14x1.25, for hose exterior Ø 6 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
4,37 €
| Šifra | Navoj za pritrditev plošče | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 135760RIE | M20x1.5 | 10 | 24 | 45.0 | Čas dobave: Predvidoma 3 - 5 dni | 6,62 € |  | |
| 135759RIE | M16x1.5 | 8 | 19 | 37.5 | Čas dobave: Predvidoma 3 - 5 dni | 5,03 € | | |
| 135757RIE | M12x1.0 | 4 | 14 | 32.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,75 € | | |
| 135761RIE | M24x2.0 | 12 | 27 | 47.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,66 € | | |
| 135758RIE | M14x1.25 | 6 | 17 | 33.0 | Čas dobave: Predvidoma 3 - 5 dni | 4,37 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Za cevi O.D. [mm] | 6 |

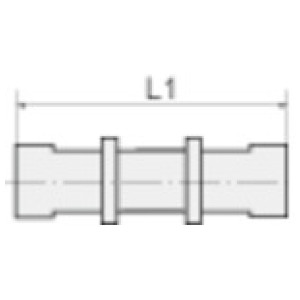

| L1 [mm] | 33.0 |
| a/f [mm] | 17 |
| Navoj za pritrditev plošče | M14x1.25 |
| Material | Plastic and nickel-plated brass |
