Ravni vtični konektor s čep bradavico 10 mm zmanjšanje
SKU: 110443RIE
EAN: 4047322387408

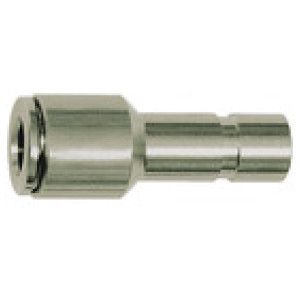

Straight push-in connector with plug nipple 10 mm reducing, for hose exterior Ø 8 mm, Working pressure max 15 bar, Stainless steel
For use with aggressive media and in areas susceptible to corrosive outside
influences, in the food processing industry and in hygienic and sanitary applications.
Čas dobave 3 - 5 dni
41,86 €

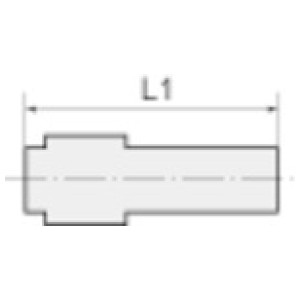

| Šifra | Za cevi O.D. [mm] | Priključek [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 110441RIE | 4 | 6 | 31.0 | Čas dobave 3 - 5 dni | 30,76 € |  | |
| 110443RIE | 8 | 10 | 34.5 | Čas dobave 3 - 5 dni | 41,86 € | | |
| 110442RIE | 6 | 8 | 31.7 | Čas dobave 3 - 5 dni | 39,69 € | |
Opis
Straight push-in connector with plug nipple 10 mm reducing, for hose exterior Ø 8 mm, Working pressure max 15 bar, Stainless steel
For use with aggressive media and in areas susceptible to corrosive outside
influences, in the food processing industry and in hygienic and sanitary applications.
Tehnični podatki in specifikacije
| Max. delovni tlak [bar] | 15 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 150 |
| Delovni tlak pulzira [bar] | 10 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 150 |
| Primerni materiali za cevi | PVDF, PTFE, PA, PU |
| Za cevi O.D. [mm] | 8 |
| L1 [mm] | 34.5 |
| Priključek [mm] | 10 |
| Material | Stainless steel 1.4404 |
