Ravni vtični konektor z vtičem nastavek 14 mm, zmanjšanje
SKU: 135290RIE
EAN: 4047322494960
Straight push-in connector with plug nipple 14 mm, reducing, for hose exterior Ø 12 mm Working pressure -0.98 - 20 bar, 1.4404
For use in more aggressive environments and corrosive media.
Only recommended for use in combination with stainless steel quick connectors type 844 ff. Suitability testing for use with other series is the responsibility of the user.
Obrestno financiranje
- 11,71 € x 6 mesecev
- 23,17 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Za cevi O.D. [mm] | Priključek [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 135287RIE | 8 | 10 | 42.8 | Čas dobave: Predvidoma 3 - 5 dni | 34,54 € |  | |
| 135290RIE | 12 | 14 | 47.8 | Čas dobave: Predvidoma 3 - 5 dni | 63,87 € | | |
| 135283RIE | 4 | 6 | 41.8 | Čas dobave: Predvidoma 3 - 5 dni | 26,51 € | | |
| 135286RIE | 6 | 10 | 42.8 | Čas dobave: Predvidoma 3 - 5 dni | 38,17 € | | |
| 135285RIE | 6 | 8 | 41.8 | Čas dobave: Predvidoma 3 - 5 dni | 31,73 € | | |
| 135288RIE | 8 | 12 | 45.8 | Čas dobave: Predvidoma 3 - 5 dni | 42,20 € | | |
| 135291RIE | 12 | 16 | 47.8 | Čas dobave: Predvidoma 3 - 5 dni | 68,69 € | | |
| 135284RIE | 4 | 8 | 41.8 | Čas dobave: Predvidoma 3 - 5 dni | 33,75 € | | |
| 135289RIE | 10 | 12 | 46.3 | Čas dobave: Predvidoma 3 - 5 dni | 43,77 € | |
Opis
Straight push-in connector with plug nipple 14 mm, reducing, for hose exterior Ø 12 mm Working pressure -0.98 - 20 bar, 1.4404
For use in more aggressive environments and corrosive media.
Only recommended for use in combination with stainless steel quick connectors type 844 ff. Suitability testing for use with other series is the responsibility of the user.
Tehnični podatki in specifikacije
| Min. delovni tlak [bar] | -0.98 |
| Max. delovni tlak [bar] | 20 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 150 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 150 |
| Primerni materiali za cevi | PVDF, PTFE, PA, PU |
| Za cevi O.D. [mm] | 12 |

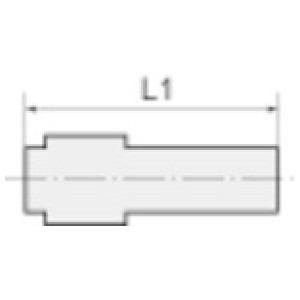

| L1 [mm] | 47.8 |
| Priključek [mm] | 14 |
| Material | Stainless steel 1.4404 |
