* slike so simbolične

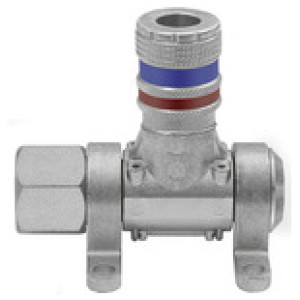

Razdelilnik stisnjenega zraka »Multi-Link«1 Varnostne spojke 7.6
SKU: 107398RIE
EAN: 4047322361842
Compressed air distributor »Multi-Link«, with safety coupling I.D. 7.6, Removal unit 1, Operating pressure max. 16 bar
Modular distributor system for flexible workplace design, can be rotated 180°.
Equipped for 2 to 5 bleed units, optionally with:
- G 1/2 female threaded connection for individually adaption output segments
- DN 7.6 quick disconnect safety couplings
Obrestno financiranje
- 11,70 € x 12 mesecev
- 22,88 € x 6 mesecev
- 45,26 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Enote za izpust | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 107401RIE | 4 | Čas dobave: Predvidoma 3 - 5 dni | 291,73 € |  | |
| 107402RIE | 5 | Čas dobave: Predvidoma 3 - 5 dni | 407,21 € | | |
| 107400RIE | 3 | Čas dobave: Predvidoma 3 - 5 dni | 234,20 € | | |
| 107399RIE | 2 | Čas dobave: Predvidoma 3 - 5 dni | 173,37 € | | |
| 107398RIE | 1 | Čas dobave: Predvidoma 3 - 5 dni | 125,40 € | |
Opis
Compressed air distributor »Multi-Link«, with safety coupling I.D. 7.6, Removal unit 1, Operating pressure max. 16 bar
Modular distributor system for flexible workplace design, can be rotated 180°.
Equipped for 2 to 5 bleed units, optionally with:
- G 1/2 female threaded connection for individually adaption output segments
- DN 7.6 quick disconnect safety couplings
Tehnični podatki in specifikacije
| Povezava | Safety couplings DN 7.6 |
| Max. obratovalni tlak [bar] | 16 |
| Enote za izpust | 1 |
| Priključni navoj | G 1/2 female |
| Tesnilo | NBR |
| Material | Galvanised steel / brass |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 80 |
| Srednje | Compressed air, non-corrosive gases |
