* slike so simbolične

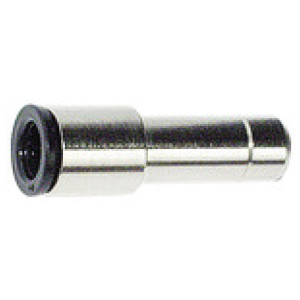

Reducirni kos value line, za 10 mm, za zun. Ø 6 mm
SKU: 116297RIE
EAN: 4047322183970
Reducing piece »value line«, Supports 10 mm, Hose connection 6 mm, Working pressure -0.98 to 16 bar, nickel-plated brass
Low-priced yet very high-quality series of push-in fittings made of nickel-plated brass.
Compact, space-saving, lightweight design. An O-ring in the fillet at the end of the thread guarantees a tight connection for all male thread parts, even on rough surfaces.
Only recommended for use in combination with quick-connect fittings of the »value line«series. The suitability test for use with other series is the responsibility of the user.
Povpraševanje
Material: Nickel-plated brass
Priporočena cev: PA, PU
Rokav: Hostaform
Serija: value line
Tesnilo: NBR, silicone-free
Vpenjalo: Stainless steel AISI 316
| Šifra | Za cevi O.D. [mm] | Šoba [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 116296RIE | 6 | 8 | 33.5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 116295RIE | 4 | 6 | 30.5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 116298RIE | 8 | 10 | 38.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 116297RIE | 6 | 10 | 37.5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Reducing piece »value line«, Supports 10 mm, Hose connection 6 mm, Working pressure -0.98 to 16 bar, nickel-plated brass
Low-priced yet very high-quality series of push-in fittings made of nickel-plated brass.
Compact, space-saving, lightweight design. An O-ring in the fillet at the end of the thread guarantees a tight connection for all male thread parts, even on rough surfaces.
Only recommended for use in combination with quick-connect fittings of the »value line«series. The suitability test for use with other series is the responsibility of the user.
Tehnični podatki in specifikacije
| Serija | value line |
| Min. delovni tlak [bar] | -0.98 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 80 |
| Tesnilo | NBR, silicone-free |
| Priporočena cev | PA, PU |
| Vpenjalo | Stainless steel AISI 316 |
| Rokav | Hostaform |
| Za cevi O.D. [mm] | 6 |

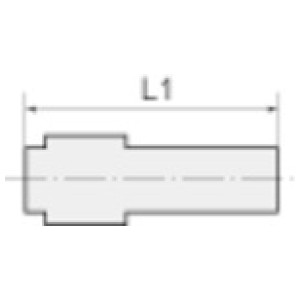

| L1 [mm] | 37.5 |
| Šoba [mm] | 10 |
| Material | Nickel-plated brass |
