Reducirni priklj.kratekM24x1,5 o.M16x1,5 i.,poniklj. Med.
SKU: 134738RIE
EAN: 4047322489843

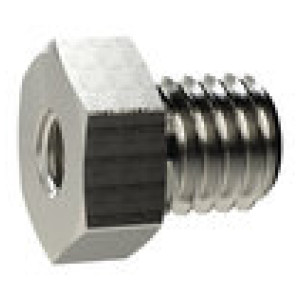

Reducing nipple, short type, M24x1,5 o., M16x1,5 i., nickel-plated brass, Max. working pressure 25 bar, Max. operating temp. 150°C
Suitable for air, water, oil, steam, etc.
Čas dobave 3 - 5 dni
9,85 €

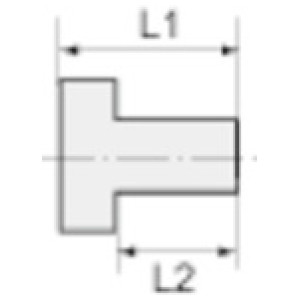

| Šifra | Notranji navoj | Zunanji navoj | L2 [mm] | L1 [mm] | a/f [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 134737RIE | M10x1.0 | M14x1.5 | 9.0 | 14.0 | 17 | Čas dobave 3 - 5 dni | 3,26 € |  | |
| 134738RIE | M16x1.5 | M24x1.5 | 16.0 | 24.0 | 28 | Čas dobave 3 - 5 dni | 9,85 € | | |
| 134739RIE | M5 | G 1/8 | 7.0 | 11.0 | 14 | Čas dobave 3 - 5 dni | 1,28 € | | |
| 134740RIE | M5 | G 1/4 | 9.0 | 14.0 | 17 | Čas dobave 3 - 5 dni | 2,24 € | | |
| 134736RIE | M3 | M5 | 5.0 | 8.0 | 7 | Čas dobave 3 - 5 dni | 2,95 € | |
Opis
Reducing nipple, short type, M24x1,5 o., M16x1,5 i., nickel-plated brass, Max. working pressure 25 bar, Max. operating temp. 150°C
Suitable for air, water, oil, steam, etc.
Tehnični podatki in specifikacije
| Max. delovni tlak [bar] | 25 |
| Max. delovna temperatura [°C] | 150 |
| Material | Nickel-plated brass CW614N |
| Notranji navoj | M16x1.5 |
| Zunanji navoj | M24x1.5 |
| L1 [mm] | 24.0 |
| L2 [mm] | 16.0 |
| a/f [mm] | 28 |
