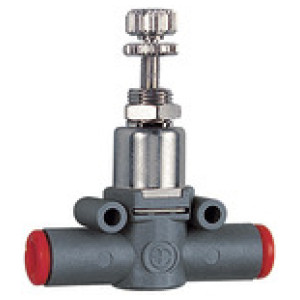

Regulator tlaka »lineonline«, za cev - za cev, za za cev Ø 8 mm
SKU: 106742RIE
EAN: 9061324
Pressure regulator »lineonline«, Hose - hose, for hose Ø 8 mm, Operating pressure 2 - 10 bar, Control range 1 - 8 bar
Particularly suitable for installation between the valve and cylinder and as a pressure regulator in secondary branches of the pneumatic system. The regulator is fitted with a pressure limiting valve for overpressure exhaust.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Regulator tlaka »lineonline«, za cev - za cev, za za cev Ø 8 mm
Notranji deli: Nickel-plated brass, brass, technopolymer, stainless steel

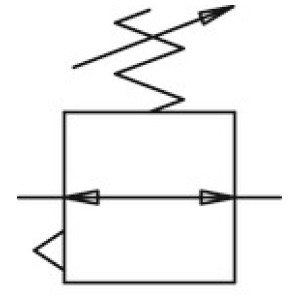

Pnevmatski simboli: On housing
Telo: Technopolymer
Pnevmatski simboli: On housing
Telo: Technopolymer

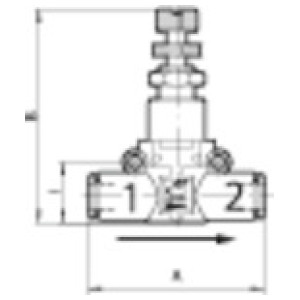

| Šifra | Za cevi Ø [mm] | I [mm] | A [mm] | B [mm] | Pretok pri 6,3 bara [Nl/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 106742RIE | 8 | 18.7 | 57.3 | 58.0 | 600 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 106741RIE | 6 | 14.6 | 49.4 | 52.0 | 400 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Pressure regulator »lineonline«, Hose - hose, for hose Ø 8 mm, Operating pressure 2 - 10 bar, Control range 1 - 8 bar
Particularly suitable for installation between the valve and cylinder and as a pressure regulator in secondary branches of the pneumatic system. The regulator is fitted with a pressure limiting valve for overpressure exhaust.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -20 |
| Min. obratovalni tlak [bar] | 2 |
| Max. obratovalni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 60 |
| Tesnilo | NBR |
| Telo | Technopolymer |
| Notranji deli | Nickel-plated brass, brass, technopolymer, stainless steel |
| Pnevmatski simboli | On housing |
| Za cevi Ø [mm] | 8 |
| A [mm] | 57.3 |
| B [mm] | 58.0 |
| I [mm] | 18.7 |
| Pretok pri 6,3 bara [Nl/min] | 600 |
| Min. krmilno območje [bar] | 1 |
| Max. krmilno območje [bar] | 8 |
