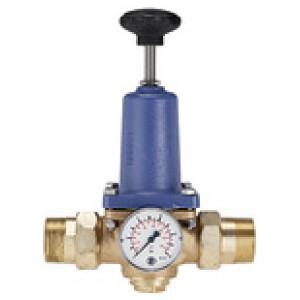

Regulator tlaka za pitno vodo, brez DVGW, R 2
SKU: 101354RIE
EAN: 4047322274388
Pressure regulator for potable water, without DVGW, pressure gauge, R 2, Control range 1.5 - 6 bar, Input pressure max. 16 bar
Pressure regulator with pressure-reduced single-seated diaphragm valve and built-in strainer. Specially designed for use in domestic water installations.
The device is also suitable for all other applications involving water, neutral
non-sticky liquids, air and neutral non-flammable gases.

Obrestno financiranje
- 13,71 € x 48 mesecev
- 17,52 € x 36 mesecev
- 25,18 € x 24 mesecev
- 48,19 € x 12 mesecev
- 94,27 € x 6 mesecev
- 186,45 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Navoj | Pretok KVS vrednost [m³/h] | DN | D [mm] | C [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|
101354RIE | R 2 | 13 | 50 | 53.0 | 241.0 | Čas dobave: Predvidoma 3 - 5 dni | 514,91 € | | |
101353RIE | R 1 1/2 | 9 | 40 | 51.0 | 243.0 | Čas dobave: Predvidoma 3 - 5 dni | 470,81 € | |
Opis
Pressure regulator for potable water, without DVGW, pressure gauge, R 2, Control range 1.5 - 6 bar, Input pressure max. 16 bar
Pressure regulator with pressure-reduced single-seated diaphragm valve and built-in strainer. Specially designed for use in domestic water installations.
The device is also suitable for all other applications involving water, neutral
non-sticky liquids, air and neutral non-flammable gases.
Tehnični podatki in specifikacije
Navoj | R 2 |
Max. vhodni tlak [bar] | 16 |
Max. delovna temperatura [°C] | 75 |
Ohišje | Bronze (Rg5) |
Tesnilo | NBR-SBR |
Membrane | NBR |
Min. krmilno območje [bar] | 1.5 |
Max. krmilno območje [bar] | 6 |

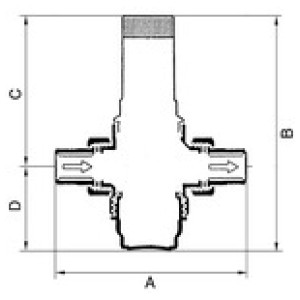

A [mm] | 210.0 |
B [mm] | 294.0 |
C [mm] | 241.0 |
D [mm] | 53.0 |
Vzmet pokrova motorja | Grey cast iron |
Pretok KVS vrednost [m³/h] | 13 |
Notranji deli | Plastic, brass, stainless steel |
Min. primarna (vstopni) tlak [bar] | 2.5 |
Min. padec tlaka [bar] | 1 |
DN | 50 |
