Serv. enota 2-delna »multifix«Kov. pos.Vel. 4G 1
SKU: 133126RIE
EAN: 4047322476157

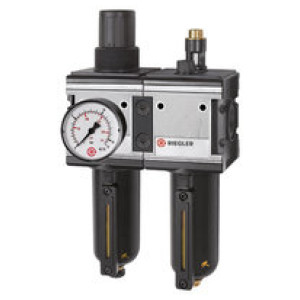

Service unit 2-part »multifix«, Metal container, Viewing tube, Size 4, G 1, Input pressure max. 20 bar, Control range 0.5 - 10 bar
Two-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Serv. enota 2-delna »multifix«Kov. pos.Vel. 4G 1
Merjenje pretoka: At P1 = 10 bar, P2 = 6,3 bar and pressure drop Δp = 1 bar
Odtok kondenzata: Semi-automatic
Ohišje: Die-cast aluminium
Posoda: Metal container with viewing tube
Serija: multifix
Vidna kupola: Zinc-glass-NBR
Vzmet pokrova motorja: POM-brass

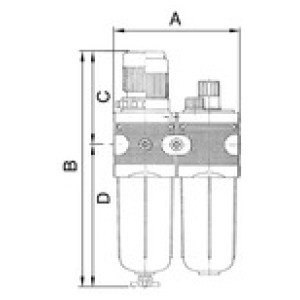

C [mm]: 125.0
A [mm]: 170.0
D [mm]: 190.0
B [mm]: 315.0
Pretok [l/min]: 12000
Odtok kondenzata: Semi-automatic
Ohišje: Die-cast aluminium
Posoda: Metal container with viewing tube
Serija: multifix
Vidna kupola: Zinc-glass-NBR
Vzmet pokrova motorja: POM-brass
C [mm]: 125.0
A [mm]: 170.0
D [mm]: 190.0
B [mm]: 315.0
Pretok [l/min]: 12000
| Šifra | Navoj | Ohišje | Velikost | DN | Rang filtra [µm] | C [mm] | A [mm] | D [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100580RIE | G 1 | Aluminium | 5 | 25 | 40 | 128.0 | 200.0 | 255.7 | 383.7 | 13500 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 133125RIE | G 3/4 | Die-cast aluminium | 4 | 20 | 5 | 125.0 | 170.0 | 190.0 | 315.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100578RIE | G 1/2 | Die-cast zinc | 3 | 15 | 5 | 99.0 | 134.8 | 149.2 | 248.2 | 5800 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100577RIE | G 3/8 | Die-cast zinc | 1 | 10 | 5 | 67.0 | 92.8 | 125.5 | 192.5 | 1200 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100576RIE | G 1/4 | Die-cast zinc | 1 | 6 | 5 | 67.0 | 92.8 | 125.5 | 192.5 | 1200 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100579RIE | G 3/4 | Die-cast zinc | 3 | 20 | 5 | 99.0 | 134.8 | 149.2 | 248.2 | 5800 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 133126RIE | G 1 | Die-cast aluminium | 4 | 25 | 5 | 125.0 | 170.0 | 190.0 | 315.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Service unit 2-part »multifix«, Metal container, Viewing tube, Size 4, G 1, Input pressure max. 20 bar, Control range 0.5 - 10 bar
Two-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Tehnični podatki in specifikacije
| Navoj | G 1 |
| Max. vhodni tlak [bar] | 20 |
| Velikost | 4 |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Vzmet pokrova motorja | POM-brass |
| Odtok kondenzata | Semi-automatic |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 10 |
| Zaslon manometra max. [bar] | 16 |
| Pretok [l/min] | 12000 |
| DN | 25 |
| Poraba zraka | Yes |
| Ohišje | Die-cast aluminium |
| Vidna kupola | Zinc-glass-NBR |
| Rang filtra [µm] | 5 |
| Posoda | Metal container with viewing tube |
| A [mm] | 170.0 |
| B [mm] | 315.0 |
| C [mm] | 125.0 |
| D [mm] | 190.0 |
| Serija | multifix |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6,3 bar and pressure drop Δp = 1 bar |
