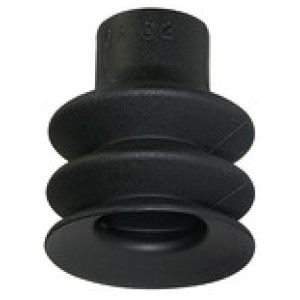

Sesalna šalčka meh, okrogla 2.5 pregib, Material NBR, »FG« Ø 9 mm
SKU: 108515RIE
EAN: 4047322212342
Bellows suction cup, Round 2.5 folds, Material NBR, »FG«, suitable connection nipple IT G 1/8, ET M5 / G 1/8, Ø9mm
Robust and hard-wearing suction pad with a single sealing lip.
Used wherever objects (parts, packing materials, etc.) need to be lifted, transported, turned over or handled in some other manner. It is also ideal when it is necessary to compensate varying workpiece heights or uneven surfaces or to handle easily damaged parts. It acts as the connecting element between the vacuum generator and the workpiece.
Properties:
- Soft, flexible folds
- Soft, tapered sealing lips
- Supports on the bottom
- High suction force
- Optimum damping effect
- Very good adaptation to curved workpiece surfaces or materials with uneven surfaces
Applications:
- Handling workpieces with extremely uneven surfaces (e.g. pipes)
- Handling easily damaged parts
| Šifra | Primerna povezava priključka z notranjim navojem | Primerna povezava priključka z zunanjim navojem | Prostornina [cm³] | Sesalna sila [N] | Ø notranje cevi [mm] | Izvlečna sila [N] | Premer [mm] | Min. izbočen polmer krivine [mm] | Višina priključka z notranjim navojem [mm] | Višina priključka z zunanjim navojem [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 108518RIE | M5 / G 1/8 | G 1/8 | 1.350 | 2.3 | 4 | 8.5 | 18 | 20 | 27.0 / 28.0 | 34.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,26 € |  | |
| 108514RIE | M5 / G 1/8 | G 1/8 | 0.043 | 0.1 | 4 | 0.9 | 7 | 8 | 19.0 / 20.0 | 26.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,50 € | | |
| 108522RIE | G 1/4 | G 1/4 | 19.500 | 13.6 | 6 | 44 | 42 | 75 | 50.0 | 61.0 | Čas dobave: Predvidoma 3 - 5 dni | 11,82 € | | |
| 108523RIE | G 1/4 | G 1/4 | 62.000 | 27 | 6 | 96 | 52 | 75 | 53.0 | 64.0 | Čas dobave: Predvidoma 3 - 5 dni | 14,16 € | | |
| 108519RIE | M5 / G 1/8 | G 1/8 | 2.000 | 3.8 | 4 | 12.1 | 20 | 30 | 27.0 / 28.0 | 34.0 | Čas dobave: Predvidoma 3 - 5 dni | 8,48 € | | |
| 108520RIE | G 1/8 | G 1/8 | 5.400 | 4.5 | 4 | 19 | 25 | 30 | 40.0 | 46.0 | Čas dobave: Predvidoma 3 - 5 dni | 10,21 € | | |
| 108513RIE | M5 | M5 | 0.033 | 0.1 | 2 | 0.8 | 5 | 8 | 18.5 | 23.5 | Čas dobave: Predvidoma 3 - 5 dni | 7,50 € | | |
| 108516RIE | M5 / G 1/8 | G 1/8 | 0.600 | 0.9 | 4 | 3.5 | 12 | 13 | 26.0 / 27.0 | 33.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,73 € | | |
| 108517RIE | M5 / G 1/8 | G 1/8 | 0.975 | 1.2 | 4 | 5.7 | 14 | 15 | 27.0 / 28.0 | 34.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,98 € | | |
| 108521RIE | G 1/4 | G 1/4 | 10.000 | 12 | 6 | 36.9 | 32 | 35 | 41.5 | 52.5 | Čas dobave: Predvidoma 3 - 5 dni | 8,60 € | | |
| 108515RIE | M5 / G 1/8 | G 1/8 | 0.150 | 0.7 | 4 | 2.3 | 9 | 10 | 20.0 / 21.0 | 27.0 | Čas dobave: Predvidoma 3 - 5 dni | 7,73 € | |
Opis
Bellows suction cup, Round 2.5 folds, Material NBR, »FG«, suitable connection nipple IT G 1/8, ET M5 / G 1/8, Ø9mm
Robust and hard-wearing suction pad with a single sealing lip.
Used wherever objects (parts, packing materials, etc.) need to be lifted, transported, turned over or handled in some other manner. It is also ideal when it is necessary to compensate varying workpiece heights or uneven surfaces or to handle easily damaged parts. It acts as the connecting element between the vacuum generator and the workpiece.
Properties:
- Soft, flexible folds
- Soft, tapered sealing lips
- Supports on the bottom
- High suction force
- Optimum damping effect
- Very good adaptation to curved workpiece surfaces or materials with uneven surfaces
Applications:
- Handling workpieces with extremely uneven surfaces (e.g. pipes)
- Handling easily damaged parts
Tehnični podatki in specifikacije
| Premer [mm] | 9 |
| Sesalna sila [N] | 0.7 |
| Izvlečna sila [N] | 2.3 |
| Primerna povezava priključka z zunanjim navojem | G 1/8 |
| Primerna povezava priključka z notranjim navojem | M5 / G 1/8 |
| Ø notranje cevi [mm] | 4 |
| Višina priključka z notranjim navojem [mm] | 20.0 / 21.0 |
| Prostornina [cm³] | 0.150 |
| Min. izbočen polmer krivine [mm] | 10 |
| Višina priključka z zunanjim navojem [mm] | 27.0 |
