Spir. cev jekl. , PU, cevi Ø 12x8, dolžina 10,0 m
SKU: 158209RIE
EAN: 4047322633550

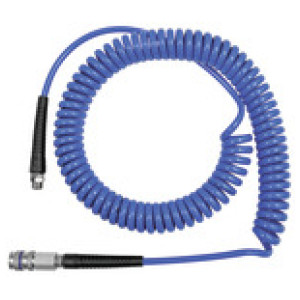

Spiral hose coupling set, Steel coupling I.D. 7.8, PU, Hose Ø 12x8, PN at 23 °C max. 10 bar, Length 10.0 m
These exceptionally elastic polyurethane hoses boast a recoil force similar to that of conventional polyamide spiral hose, but with less tendency to loop and significantly better resistance to abrasion.
There is consequently less danger of scratching coated or sensitive surfaces.
The hose is extremely flexible and non-kinking.
Not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Obrestno financiranje
- 11,49 € x 24 mesecev
- 21,99 € x 12 mesecev
- 43,02 € x 6 mesecev
- 85,08 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Storitev dolžina max. [m] | Velikost cevi [mm] | Max. obratovalni tlak pri 23 ° C [bar] | Število tuljav | O.D. tuljave [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|
158205RIE | 10.0 | 10x6.5 | 11 | 63 | 69 | Čas dobave: Predvidoma 3 - 5 dni | 197,90 € | ||
158202RIE | 3.0 | 10x6.5 | 11 | 16 | 69 | Čas dobave: Predvidoma 3 - 5 dni | 117,46 € | ||
158201RIE | 10.0 | 8x5 | 12 | 110 | 42 | Čas dobave: Predvidoma 3 - 5 dni | 151,11 € | ||
158206RIE | 3.0 | 12x8 | 10 | 14 | 82 | Čas dobave: Predvidoma 3 - 5 dni | 132,82 € | ||
158200RIE | 7.5 | 8x5 | 12 | 83 | 42 | Čas dobave: Predvidoma 3 - 5 dni | 130,80 € | ||
158208RIE | 7.5 | 12x8 | 10 | 38 | 82 | Čas dobave: Predvidoma 3 - 5 dni | 201,15 € | ||
158204RIE | 7.5 | 10x6.5 | 11 | 41 | 69 | Čas dobave: Predvidoma 3 - 5 dni | 165,18 € | ||
158203RIE | 6.0 | 10x6.5 | 11 | 37 | 69 | Čas dobave: Predvidoma 3 - 5 dni | 138,70 € | ||
158198RIE | 3.0 | 8x5 | 12 | 29 | 42 | Čas dobave: Predvidoma 3 - 5 dni | 99,48 € | ||
158199RIE | 6.0 | 8x5 | 12 | 64 | 42 | Čas dobave: Predvidoma 3 - 5 dni | 117,46 € | ||
158207RIE | 6.0 | 12x8 | 10 | 31 | 82 | Čas dobave: Predvidoma 3 - 5 dni | 179,91 € | ||
158209RIE | 10.0 | 12x8 | 10 | 54 | 82 | Čas dobave: Predvidoma 3 - 5 dni | 234,83 € |
Opis
Spiral hose coupling set, Steel coupling I.D. 7.8, PU, Hose Ø 12x8, PN at 23 °C max. 10 bar, Length 10.0 m
These exceptionally elastic polyurethane hoses boast a recoil force similar to that of conventional polyamide spiral hose, but with less tendency to loop and significantly better resistance to abrasion.
There is consequently less danger of scratching coated or sensitive surfaces.
The hose is extremely flexible and non-kinking.
Not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Tehnični podatki in specifikacije
Min. delovna temperatura [°C] | -20 |
Max. delovna temperatura [°C] | 60 |
Max. obratovalni tlak pri 23 ° C [bar] | 10 |
Velikost cevi [mm] | 12x8 |
Število tuljav | 54 |
Storitev dolžina max. [m] | 10.0 |
O.D. tuljave [mm] | 82 |
