Spir. cev, prik., Kink zaščita vzmet, PU, cevi Ø 8x5, 6 m
SKU: 113435RIE
EAN: 4047322165792

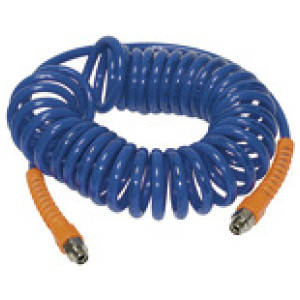

Spiral hose, Fitting and kink protection spring, PU, G 1/4, Hose Ø 8x5, PN at 23 °C max. 10 bar, Length 6 m
Standard type or with braided reinforcements for high pressures.
These exceptionally elastic polyurethane hoses boast a recoil force similar to that of conventional nylon spiral hose, but with less tendency to loop and significantly better resistance to abrasion.
There is consequently less danger of scratching coated or sensitive surfaces.
The hose is extremely flexible and non-kinking.
Povpraševanje
| Šifra | Navoj | Storitev dolžina max. [m] | Velikost cevi [mm] | Max. obratovalni tlak pri 23 ° C [bar] | O.D. tuljave [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 113434RIE | G 1/4 | 3.0 | 8x5 | 10 | 40 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 113435RIE | G 1/4 | 6.0 | 8x5 | 10 | 40 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 113436RIE | G 1/4 | 7.5 | 8x5 | 10 | 40 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 113437RIE | G 1/4 | 3.0 | 9.5x6.3 | 10 | 60 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 113438RIE | G 1/4 | 6.0 | 9.5x6.3 | 10 | 60 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 113439RIE | G 1/4 | 7.5 | 9.5x6.3 | 10 | 60 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 113440RIE | G 1/4 | 10.0 | 9.5x6.3 | 10 | 60 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 113441RIE | G 3/8 | 3.0 | 12x8 | 9 | 80 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 113442RIE | G 3/8 | 6.0 | 12x8 | 9 | 80 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 113443RIE | G 3/8 | 7.5 | 12x8 | 9 | 80 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Spiral hose, Fitting and kink protection spring, PU, G 1/4, Hose Ø 8x5, PN at 23 °C max. 10 bar, Length 6 m
Standard type or with braided reinforcements for high pressures.
These exceptionally elastic polyurethane hoses boast a recoil force similar to that of conventional nylon spiral hose, but with less tendency to loop and significantly better resistance to abrasion.
There is consequently less danger of scratching coated or sensitive surfaces.
The hose is extremely flexible and non-kinking.
Tehnični podatki in specifikacije
| Min. delovna temperatura [°C] | -40 |
| Max. delovna temperatura [°C] | 74 |
| Max. obratovalni tlak pri 23 ° C [bar] | 10 |
| Velikost cevi [mm] | 8x5 |
| Navoj | G 1/4 |
| Storitev dolžina max. [m] | 6.0 |
| O.D. tuljave [mm] | 40 |
