Spir. cev , standard, PU, cev Ø 10x6.5, dolžina 3 m
SKU: 158178RIE
EAN: 4047322633246

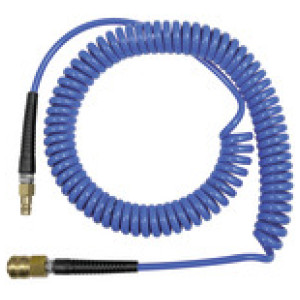

Spiral hose coupling set, Standard coupling I.D. 7.2, PU, Hose Ø 10x6.5, PN at 23 °C max. 11 bar, Length 3.0 m
These exceptionally elastic polyurethane hoses boast a recoil force similar to that of conventional polyamide spiral hose, but with less tendency to loop and significantly better resistance to abrasion.
There is consequently less danger of scratching coated or sensitive surfaces.
The hose is extremely flexible and non-kinking.
Not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Povpraševanje
| Šifra | Storitev dolžina max. [m] | Velikost cevi [mm] | Max. obratovalni tlak pri 23 ° C [bar] | Število tuljav | O.D. tuljave [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 158181RIE | 10.0 | 10x6.5 | 11 | 63 | 69 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 158182RIE | 3.0 | 12x8 | 10 | 14 | 82 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 158177RIE | 10.0 | 8x5 | 12 | 110 | 42 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 158185RIE | 10.0 | 12x8 | 10 | 54 | 82 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 158180RIE | 7.5 | 10x6.5 | 11 | 41 | 69 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 158179RIE | 6.0 | 10x6.5 | 11 | 37 | 69 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 158176RIE | 7.5 | 8x5 | 12 | 83 | 42 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 158175RIE | 6.0 | 8x5 | 12 | 64 | 42 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 158174RIE | 3.0 | 8x5 | 12 | 29 | 42 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 158184RIE | 7.5 | 12x8 | 10 | 38 | 82 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 158178RIE | 3.0 | 10x6.5 | 11 | 16 | 69 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 158183RIE | 6.0 | 12x8 | 10 | 31 | 82 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Spiral hose coupling set, Standard coupling I.D. 7.2, PU, Hose Ø 10x6.5, PN at 23 °C max. 11 bar, Length 3.0 m
These exceptionally elastic polyurethane hoses boast a recoil force similar to that of conventional polyamide spiral hose, but with less tendency to loop and significantly better resistance to abrasion.
There is consequently less danger of scratching coated or sensitive surfaces.
The hose is extremely flexible and non-kinking.
Not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Tehnični podatki in specifikacije
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 60 |
| Max. obratovalni tlak pri 23 ° C [bar] | 11 |
| Velikost cevi [mm] | 10x6.5 |
| Število tuljav | 16 |
| Storitev dolžina max. [m] | 3.0 |
| O.D. tuljave [mm] | 69 |
