Stenski prikljucki hN.N.rih spojk s priključnicamiI.D. 7.2
SKU: 107272RIE
EAN: 4047322368193

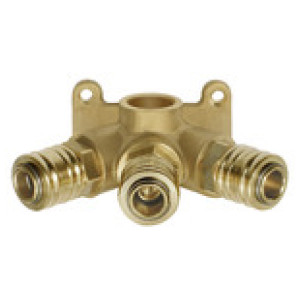

Distributor for wall mounting with quick-connect couplings I.D. 7.2, Bright brass, G 1/2 IT, Operating pressure 0 - 35 bar
1, 2 or 3-way distributor pieces made of brass with a bare metal surface, pre-assembled with quick disconnect coupling DN 7.2.
Available with threaded connection inside or outside or nipple for adaptation into an existing quick disconnect coupling DN 7.2 to DN 7.8.
Obrestno financiranje
- 11,35 € x 6 mesecev
- 22,45 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|
| 107272RIE | Čas dobave: Predvidoma 3 - 5 dni | 61,93 € |  |
Opis
Distributor for wall mounting with quick-connect couplings I.D. 7.2, Bright brass, G 1/2 IT, Operating pressure 0 - 35 bar
1, 2 or 3-way distributor pieces made of brass with a bare metal surface, pre-assembled with quick disconnect coupling DN 7.2.
Available with threaded connection inside or outside or nipple for adaptation into an existing quick disconnect coupling DN 7.2 to DN 7.8.
Tehnični podatki in specifikacije
| Povezava | G 1/2 IT |
| Max. obratovalni tlak [bar] | 35 |
| Sestava distributerja | 5 x G 1/2 outlets |
| Spojke | DN 7.2, brass with a bare metal surface, G 1/2 ET |
| Ohišje | Brass with a bare metal surface |
| Tesnilo | Industrial adhesives, medium strength |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 100 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 100 |
| Varovaka | Industrial adhesives, medium strength |
| Premer [mm] | 113.0 |
| Višina [mm] | 57.0 |
