* slike so simbolične

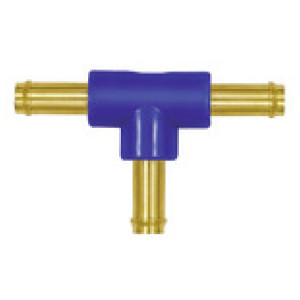

T za cevni nastavek, za za cev I.D. 4 mm, medenina in POM
SKU: 133411RIE
EAN: 4047322478083
T-hose fitting supports, for hose I.D. 4 mm, Temperature range -10 °C to 60 °C, brass and POM
Tube connectors for polyamide hoses and polyurethane hoses made of brass CW617N and acetal copolymer (POM).
Čas dobave: Predvidoma 3 - 5 dni
3,03 €

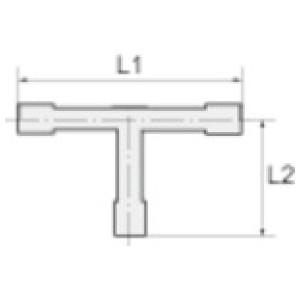

| Šifra | Za cevi [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 133410RIE | I.D. 3 | 15.3 | 30.6 | Čas dobave: Predvidoma 3 - 5 dni | 3,03 € |  | |
| 133412RIE | I.D. 6 | 25.8 | 51.6 | Čas dobave: Predvidoma 3 - 5 dni | 4,16 € | | |
| 133411RIE | I.D. 4 | 18.7 | 37.3 | Čas dobave: Predvidoma 3 - 5 dni | 3,03 € | |
Opis
T-hose fitting supports, for hose I.D. 4 mm, Temperature range -10 °C to 60 °C, brass and POM
Tube connectors for polyamide hoses and polyurethane hoses made of brass CW617N and acetal copolymer (POM).
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -10 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 60 |
| Max. dovoljeni tlak [bar] | 10 |
| Material | Brass CW617N and acetal copolymer (POM) |
| Za cevi [mm] | I.D. 4 |
| L1 [mm] | 37.3 |
| L2 [mm] | 18.7 |
