Temperdeča coupl. DN 9, navoj 13 mm, zaporni ventil,Fi cevi ravno slika

* slike so simbolične

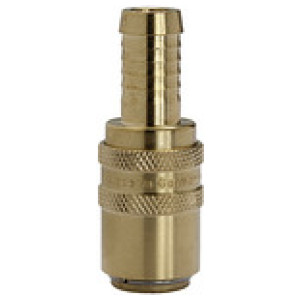

Temperdeča coupl. DN 9, navoj 13 mm, zaporni ventil,Fi cevi ravno

SKU: 107953RIE
EAN: 4047322258678

Tempered coupling DN 9, Taps 13 mm, Blocking valve, Brass, Hose sleeve straight, Operating pressure max. 15 bar

Compatible with HASCO Z 8 system.

For temperature control applications involving hot or cold water or heat transfer oil.

Optionally with free passage, one or both sides sealing.

Female-threaded couplings and plugs with female-threaded PTFE seal.

Čas dobave: Predvidoma 3 - 5 dni
Pošljite povpraševanje
Primerjaj z ostalimi
Šifra Tip stebelnih cevi Dolžina [mm] Zaloga Cena Nakup Natisni
107954RIE 45° 50.5
Čas dobave: Predvidoma 3 - 5 dni
 Povpraševanje Povpraševanje Natisni
107955RIE 90° 50.5
Čas dobave: Predvidoma 3 - 5 dni
 Povpraševanje Povpraševanje Natisni
107953RIE straight 61.5
Čas dobave: Predvidoma 3 - 5 dni
 Povpraševanje Povpraševanje Natisni

Opis

Tempered coupling DN 9, Taps 13 mm, Blocking valve, Brass, Hose sleeve straight, Operating pressure max. 15 bar

Compatible with HASCO Z 8 system.

For temperature control applications involving hot or cold water or heat transfer oil.

Optionally with free passage, one or both sides sealing.

Female-threaded couplings and plugs with female-threaded PTFE seal.

Tehnični podatki in specifikacije

Max. obratovalni tlak [bar] 15
Srednje Air, water, oil, vacuum
Material Brass 2.0401
Min. temperatura medija [°C] -20
Max. temperatura medija [°C] 160
Min. sobna temperatura [°C] -20
Max. sobna temperatura [°C] 160
Tesnilo FPM (PTFE coated)
Krogla Stainless steel
Vzmet Stainless steel
Pritrdilni obroč Stainless steel
Tip stebelnih cevi straight
Priključek za cev [mm] 13
Dolžina [mm] 61.5
