* slike so simbolične

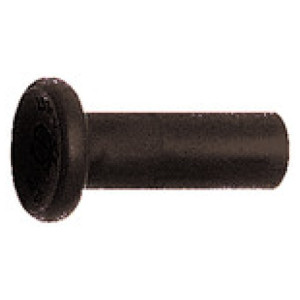

Tesnilni čep POM, podpira 22 mm, barva črna
SKU: 110356RIE
EAN: 4047322118583
Stopper POM, Supports 22 mm, Colour black, working pressure -0.95 to 10 bar
Lightweight, push-in fittings distinguished by high strength, toughness, resistance to abrasion and impact resistance - ideal for a wide range of applications.
All our push-in fittings made of POM have the following approvals:
drinking water DVGW, KTW, FDA and NSF.
Plastic and metal tubes are connected together quickly and easily. Suitable for compressed air or liquids, with good resistance to a large number of chemicals.
| Šifra | Barva | Šoba [mm] | Max. delovni tlak [bar] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 110349RIE | Red | 5 | 16 | 29.2 | Čas dobave: Predvidoma 3 - 5 dni | 0,87 € |  | |
| 110350RIE | Red | 6 | 16 | 30.0 | Čas dobave: Predvidoma 3 - 5 dni | 0,93 € | | |
| 110352RIE | Red | 10 | 10 | 35.8 | Čas dobave: Predvidoma 3 - 5 dni | 1,74 € | | |
| 110353RIE | Red | 12 | 10 | 38.6 | Čas dobave: Predvidoma 3 - 5 dni | 2,22 € | | |
| 110357RIE | black | 28 | 10 | 55.6 | Čas dobave: Predvidoma 3 - 5 dni | 3,75 € | | |
| 110348RIE | Red | 4 | 16 | 28.7 | Čas dobave: Predvidoma 3 - 5 dni | 0,83 € | | |
| 110351RIE | Red | 8 | 16 | 31.0 | Čas dobave: Predvidoma 3 - 5 dni | 1,17 € | | |
| 110355RIE | black | 18 | 10 | 41.5 | Čas dobave: Predvidoma 3 - 5 dni | 2,87 € | | |
| 110354RIE | black | 15 | 10 | 45.0 | Čas dobave: Predvidoma 3 - 5 dni | 2,60 € | | |
| 110356RIE | black | 22 | 10 | 45.0 | Čas dobave: Predvidoma 3 - 5 dni | 3,05 € | |
Opis
Stopper POM, Supports 22 mm, Colour black, working pressure -0.95 to 10 bar
Lightweight, push-in fittings distinguished by high strength, toughness, resistance to abrasion and impact resistance - ideal for a wide range of applications.
All our push-in fittings made of POM have the following approvals:
drinking water DVGW, KTW, FDA and NSF.
Plastic and metal tubes are connected together quickly and easily. Suitable for compressed air or liquids, with good resistance to a large number of chemicals.
Tehnični podatki in specifikacije
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Min. delovna temperatura v zraku [°C] | -20 |
| Max. delovna temperatura v zraku [°C] | 65 |
| Min. delovna temperatura v vodi [°C] | 1 |
| Max. delovna temperatura v vodi [°C] | 70 |

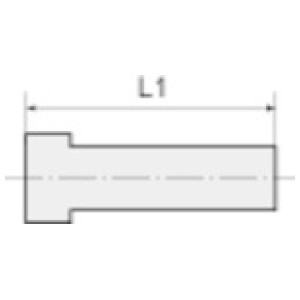

| L1 [mm] | 45.0 |
| Šoba [mm] | 22 |
| Barva | black |
| Material | Acetal polymer (POM) |
