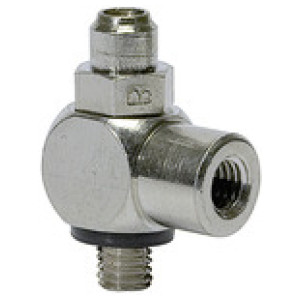

Throttle valve, both directions throttling (B) M5 IT, M5 slika

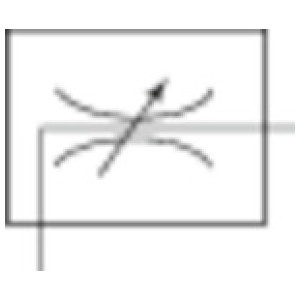

Throttle valve, both directions throttling (B) M5 IT, M5 slika
Throttle valve, both directions throttling (B) M5 IT, M5 slika

* slike so simbolične

Throttle valve, both directions throttling (B) M5 IT, M5

SKU: 106964RIE
EAN: 4047322181051

Throttle valve, both directions throttling (B) Threaded connection M5 IT, M5, PN max. 10 bar, Temperature -20 °C to 80 °C

For throttling flow rates and regulating the piston speed of cylinders. Small dimensions, ideal for tight spaces. To be screwed directly into the valve or cylinder. The set flow rate can be locked via the lock nut in the version with knurled screw. The variants in banjo bolt construction can be rotated during assembly and are fixed after tightening. The variants with plug-in connector, rotated can also be rotated freely after assembly. The seals and lubricants used are silicone-free.

Čas dobave: Predvidoma 3 - 5 dni
13,53 €
Primerjaj z ostalimi

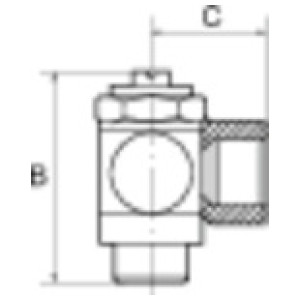

Šifra Navoj Povezava a/f [mm] C [mm] B [mm] Zaloga Cena Nakup Natisni
106968RIE G 1/2 G 1/2 female thread 26 32.0 61.0
Čas dobave: Predvidoma 3 - 5 dni
40,42 € Natisni
106966RIE G 1/4 G 1/4 female thread 17 22.0 40.0
Čas dobave: Predvidoma 3 - 5 dni
14,75 € Natisni
106965RIE G 1/8 G 1/8 female thread 14 16.0 32.0
Čas dobave: Predvidoma 3 - 5 dni
13,53 € Natisni
106967RIE G 3/8 G 3/8 female thread 20 26.0 50.0
Čas dobave: Predvidoma 3 - 5 dni
26,29 € Natisni
106964RIE M5 M5 female thread 8 11.5 24.5
Čas dobave: Predvidoma 3 - 5 dni
13,53 € Natisni

Opis

Throttle valve, both directions throttling (B) Threaded connection M5 IT, M5, PN max. 10 bar, Temperature -20 °C to 80 °C

For throttling flow rates and regulating the piston speed of cylinders. Small dimensions, ideal for tight spaces. To be screwed directly into the valve or cylinder. The set flow rate can be locked via the lock nut in the version with knurled screw. The variants in banjo bolt construction can be rotated during assembly and are fixed after tightening. The variants with plug-in connector, rotated can also be rotated freely after assembly. The seals and lubricants used are silicone-free.

Tehnični podatki in specifikacije

Max. obratovalni tlak [bar] 10
Min. temperaturno območje [°C] -20
Max. temperaturno območje [°C] 80
Tesnilo NBR
Zarobljena tesnila Polyamide, glass fibre-reinforced (only parts in banjo bolt construction)
Navoj M5
Povezava M5 female thread
B [mm] 24.5
C [mm] 11.5
a/f [mm] 8
Telo Nickel-plated brass
Silicone-free Yes
Ffunkcija Both directions throttling (B)
Vrsta povezave Screw connection
Design Banjo bolt construction
