Tlačni regulator iz nerjevečega jekla, G 1, 0.4 - 4.0 bar
SKU: 137331RIE
EAN: 4047322513142

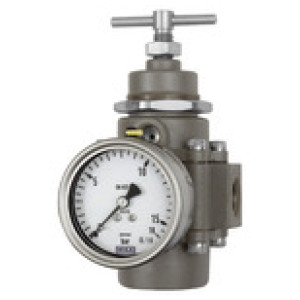

Stainless steel casting pressure regulator, 1.4401, secondary venting (reversible), Size 4, G 1, Control range 0.4 - 4.0 bar
Stainless steel regulators for use in the chemical industry, mining, plant construction and
special machinery industries, pneumatics, etc.
Pressure setting by T-handle.
Čas dobave: Predvidoma 3 - 5 dni
1.480,54 €
ali od 39,43 € / mesec
Izračunaj obrok
Obrestno financiranje
- 100 € + 39,43 € x 48 mesecev
- 100 € + 50,39 € x 36 mesecev
- 100 € + 72,40 € x 24 mesecev
- 100 € + 138,58 € x 12 mesecev
- 100 € + 271,09 € x 6 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Min. krmilno območje [bar] | Velikost | Max. krmilno območje [bar] | C [mm] | A [mm] | D [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 137323RIE | G 1/4 | 0.4 | 1 | 4 | 51.0 | 62.0 | 115.0 | 166.0 | 2125 | Čas dobave: Predvidoma 3 - 5 dni | 464,48 € |  | |
| 137328RIE | G 1/2 | 1.7 | 3 | 17.5 | 49.0 | 82.0 | 121.0 | 170.0 | 8070 | Čas dobave: Predvidoma 3 - 5 dni | 573,96 € | | |
| 137329RIE | G 3/4 | 0.4 | 3 | 4 | 49.0 | 82.0 | 121.0 | 170.0 | 9260 | Čas dobave: Predvidoma 3 - 5 dni | 573,96 € | | |
| 137334RIE | G 1 1/2 | 1.7 | 4 | 17.5 | 88.0 | 120.0 | 136.0 | 224.0 | 11270 | Čas dobave: Predvidoma 3 - 5 dni | 1.480,54 € | | |
| 137324RIE | G 1/4 | 1.7 | 1 | 17.5 | 51.0 | 62.0 | 115.0 | 166.0 | 2125 | Čas dobave: Predvidoma 3 - 5 dni | 464,48 € | | |
| 137332RIE | G 1 | 1.7 | 4 | 17.5 | 88.0 | 120.0 | 136.0 | 224.0 | 10790 | Čas dobave: Predvidoma 3 - 5 dni | 1.480,54 € | | |
| 137327RIE | G 1/2 | 0.4 | 3 | 4 | 49.0 | 82.0 | 121.0 | 170.0 | 8070 | Čas dobave: Predvidoma 3 - 5 dni | 573,96 € | | |
| 137326RIE | G 3/8 | 1.7 | 1 | 17.5 | 51.0 | 62.0 | 115.0 | 166.0 | 3965 | Čas dobave: Predvidoma 3 - 5 dni | 464,48 € | | |
| 137333RIE | G 1 1/2 | 0.4 | 4 | 4 | 88.0 | 120.0 | 136.0 | 224.0 | 11270 | Čas dobave: Predvidoma 3 - 5 dni | 1.480,54 € | | |
| 137325RIE | G 3/8 | 0.4 | 1 | 4 | 51.0 | 62.0 | 115.0 | 166.0 | 3965 | Čas dobave: Predvidoma 3 - 5 dni | 464,48 € | | |
| 137330RIE | G 3/4 | 1.7 | 3 | 17.5 | 49.0 | 82.0 | 121.0 | 170.0 | 9260 | Čas dobave: Predvidoma 3 - 5 dni | 573,96 € | | |
| 137331RIE | G 1 | 0.4 | 4 | 4 | 88.0 | 120.0 | 136.0 | 224.0 | 10790 | Čas dobave: Predvidoma 3 - 5 dni | 1.480,54 € | |
Opis
Stainless steel casting pressure regulator, 1.4401, secondary venting (reversible), Size 4, G 1, Control range 0.4 - 4.0 bar
Stainless steel regulators for use in the chemical industry, mining, plant construction and
special machinery industries, pneumatics, etc.
Pressure setting by T-handle.
Tehnični podatki in specifikacije
| Navoj | G 1 |
| Max. vhodni tlak [bar] | 30 |
| Ohišje | Stainless steel casting 1.4401 (AISI 316) |
| Tesnilo | NBR |
| Membrane | NBR/PTFE |
| Max. temperatura medija [°C] | 80 |
| Max. sobna temperatura [°C] | 80 |
| Pretok [l/min] | 10790 |
| Min. krmilno območje [bar] | 0.4 |
| Max. krmilno območje [bar] | 4 |

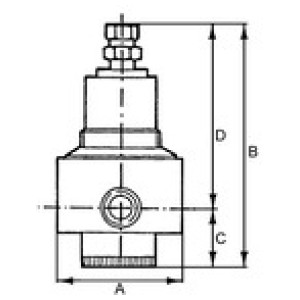

| A [mm] | 120.0 |
| B [mm] | 224.0 |
| C [mm] | 88.0 |
| D [mm] | 136.0 |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6 bar and pressure drop Δp ≤ 1 bar |
| Velikost | 4 |
