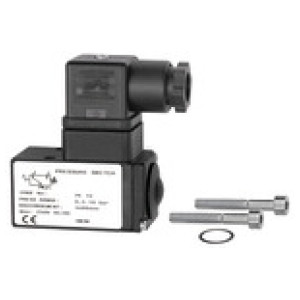

Tlačno stikalo z zamenljivim kontaktom s prirobnico, 0.5-10 bar
SKU: 100280RIE
EAN: 4047322249454
Pressure switch changeover contact design flangeable, Plastic, Ambient temp. -10 °C to 60 °C, Setting range 0.5 - 10 bar
Special pressure switches for pneumatic applications.
Extremely precise thanks to the large control diaphragm.
Two through holes in the housing for flanging the switch.
Čas dobave: Predvidoma 3 - 5 dni
144,55 €
ali od 13,57 € / mesec
Izračunaj obrok
Obrestno financiranje
- 13,57 € x 12 mesecev
- 26,54 € x 6 mesecev
- 52,50 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|
| 100280RIE | Čas dobave: Predvidoma 3 - 5 dni | 144,55 € |  |
Opis
Pressure switch changeover contact design flangeable, Plastic, Ambient temp. -10 °C to 60 °C, Setting range 0.5 - 10 bar
Special pressure switches for pneumatic applications.
Extremely precise thanks to the large control diaphragm.
Two through holes in the housing for flanging the switch.
Tehnični podatki in specifikacije
| Preklopna napetost | max. 250 V AC/DC |
| Min. prilagoditveno območje [bar] | 0.5 |
| Max. območje nastavitve [bar] | 10 |
| IP zaščita | IP 65 |
| Aplikacije | Air, neutral gases (lubricated or unlubricated) |
| Preklopna frekvenca | 60 Zyklen/min. |
| Material | Plastic (PA 61/XT) |
| Ffunkcija | changeover contact |
| Vrsta gradnje | Spring-loaded diaphragm (NBR) |
| Max. sobna temperatura [°C] | 60 |
| Min. sobna temperatura [°C] | -10 |
| Električni priključek | Pg 11P coupling plug acc. to ISO 4400 |
| Opis | Pressure switches - suitable for flange mounting |
