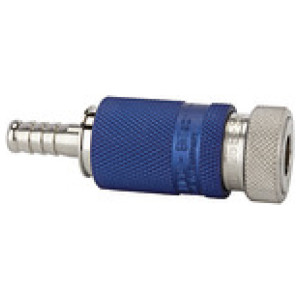

Varnosta spojka I.D. 7.8Bi-Tec pocinkana Med.I.D. 9
SKU: 107612RIE
EAN: 4047322062503
Safety coupling I.D. 7.8, Bi-Tec type, nickel-plated brass, Sleeve I.D. 9, Operating pressure max. 20 bar, Temp. -20 °C to 100 °C
Safety air relief couplings for gaseous media.
Combination of a sliding valve and a quick disconnect coupling!
Connection is pressureless. Only a low spring force has to be overcome. Pressure only builds up when the blue sleeve is pushed forward. It is impossible to disconnect the hose either intentionally or inadvertently in this position. When the sliding sleeve is moved back into its home position, the air is relieved from the hose and the coupling can be disconnected.
Povpraševanje
Merjenje pretoka: at 6 bar and Δp = 0.5 bar
Ohišje: Nickel-plated brass
Povezava: I.D. 9
Rokav: Anodised aluminium
Sprostitveni rokav: Hardened, nickel-plated steel
Telo ventila: Nickel-plated brass
Vzmet: Stainless steel
Pretok: 1400 l/min (air)
| Šifra | Povezava | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 107612RIE | I.D. 9 | Čas dobave 3 - 5 dni | ? | Povpraševanje |  |
| 107614RIE | I.D. 13 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 107613RIE | I.D. 10 | Čas dobave 3 - 5 dni | 33,94 € | | |
| 107610RIE | I.D. 6 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 107611RIE | I.D. 8 | Čas dobave 3 - 5 dni | 33,94 € | |
Opis
Safety coupling I.D. 7.8, Bi-Tec type, nickel-plated brass, Sleeve I.D. 9, Operating pressure max. 20 bar, Temp. -20 °C to 100 °C
Safety air relief couplings for gaseous media.
Combination of a sliding valve and a quick disconnect coupling!
Connection is pressureless. Only a low spring force has to be overcome. Pressure only builds up when the blue sleeve is pushed forward. It is impossible to disconnect the hose either intentionally or inadvertently in this position. When the sliding sleeve is moved back into its home position, the air is relieved from the hose and the coupling can be disconnected.
Tehnični podatki in specifikacije
| DN | 7.8 |
| Max. obratovalni tlak [bar] | 20 |
| Povezava | I.D. 9 |
| Merjenje pretoka | at 6 bar and Δp = 0.5 bar |
| Ohišje | Nickel-plated brass |
| Tesnilo | NBR |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 100 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 100 |
| Pretok | 1400 l/min (air) |
| Krogla | Stainless steel |
| Vzmet | Stainless steel |
| Telo ventila | Nickel-plated brass |
| Rokav | Anodised aluminium |
| Sprostitveni rokav | Hardened, nickel-plated steel |
| Dolžina [mm] | 86.0 |
