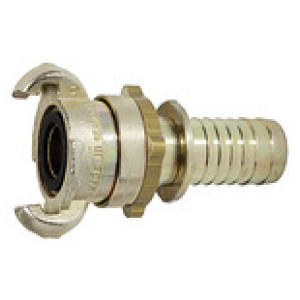

Varnostna čeljustna spojka, I.D. 25 (1"), z Varnostne ovratnice
SKU: 107888RIE
EAN: 4047322260176
Safety jaw coupling with hose connection, I.D. 25 (1"), Safety collar, Malleable cast iron, Operating pressure max. 16 bar
Universal standard coupling in safety design according to DIN 3238 for absolutely secure compressed air lines on construction sites or in industry.
Easy to couple, secured against accidental opening: just screw the ring tight after coupling!
- Robust couplings with malleable iron head, steel stem with special profile,
zinc plated and yellow chromated
- Chrome VI-free, with double safety lock
- Large bore for increased flow rate
| Šifra | Za cev I.D. | DN | Varnostni ovratnik | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 107886RIE | "13 (1/2"")" | 10 | 24 | 97.7 | Čas dobave: Predvidoma 3 - 5 dni | 36,01 € |  | |
| 107887RIE | "19 (3/4"")" | 15 | 34 | 99.4 | Čas dobave: Predvidoma 3 - 5 dni | 36,01 € | | |
| 107888RIE | "25 (1"")" | 19 | 39 | 98.6 | Čas dobave: Predvidoma 3 - 5 dni | 36,01 € | |
Opis
Safety jaw coupling with hose connection, I.D. 25 (1"), Safety collar, Malleable cast iron, Operating pressure max. 16 bar
Universal standard coupling in safety design according to DIN 3238 for absolutely secure compressed air lines on construction sites or in industry.
Easy to couple, secured against accidental opening: just screw the ring tight after coupling!
- Robust couplings with malleable iron head, steel stem with special profile,
zinc plated and yellow chromated
- Chrome VI-free, with double safety lock
- Large bore for increased flow rate
Tehnični podatki in specifikacije
| DN | 19 |
| Max. obratovalni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -40 |
| Max. delovna temperatura [°C] | 95 |
| Tesnilo | NBR |
| Material | Malleable iron |
| Razdalja med objemkami [mm] | 42 |
| Za cev I.D. | "25 (1"")" |
| L [mm] | 98.6 |
| H [mm] | 63.0 |
| Varnostni ovratnik | 39 |
